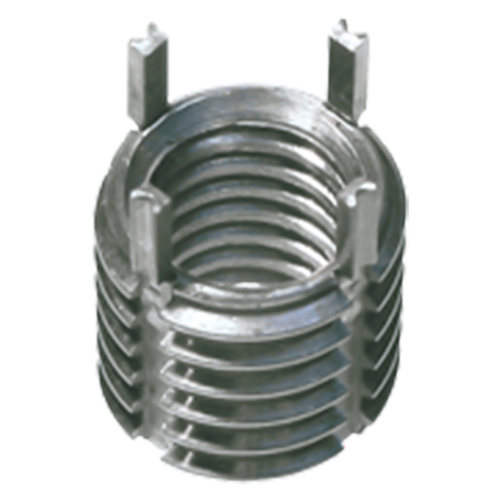

Key Inserts-Thinwall, Stainless Steel
Thinwall Key Inserts have a smaller OD thread size than standard heavy-duty inserts, ideal for tight spaces where less pull-out strength is acceptable. Key Inserts are ideal for thread reinforcement, especially when the mating stud or bolt will be removed frequently. These stainless inserts provide strong, permanent stainless steel threads in any parent material, ferrous, non-ferrous, or non-metallic. Key Inserts are also well suited for quick repair of stripped, damaged, or worn threads. Locking keys positively prevent the insert from rotating.
Application Information
Material
Item | Material | Heat Treat | Finish | RoHS |
Body | 303 Stainless Steel | - | - | ✔ |
Keys | 302 Stainless Steel | - | - | ✔ |
Parts Specification
Internal Thread | Internal Thread Pitch (mm) | External Thread | External Thread Pitch (mm) | Length (mm) | Shear Engagement Area (sq Mm) |
M8 | 1.25mm | M12x1.25 | 1.25mm | 12mm | 266 sqmm |
