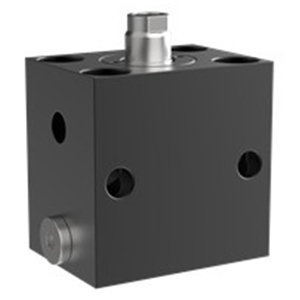

Carr Lane CLR-1576-105 | M20 x 30 Thread x 12.00mm Stroke x 100.00mm Width x 75.00mm Depth x 125.00mm Height Block Pull Cylinder

Product Information

7250 psi max Single Acting Pull-clamp version of our popular Block Cylinders. Plunger is extended with pressure off, then retracts when pressure is applied. Compact design with many applications. Easy to mount on flat surfaces, horizontally or vertically. Excellent for pressing and assembly operations, with very high forces available. Available in five inch sizes and eight metric sizes. Push force at 7250 psi:            1350 Lbs            3210 Lbs            5440 Lbs            8520 Lbs          12900 Lbs          20700 Lbs          34100 Lbs          52800 Lbs

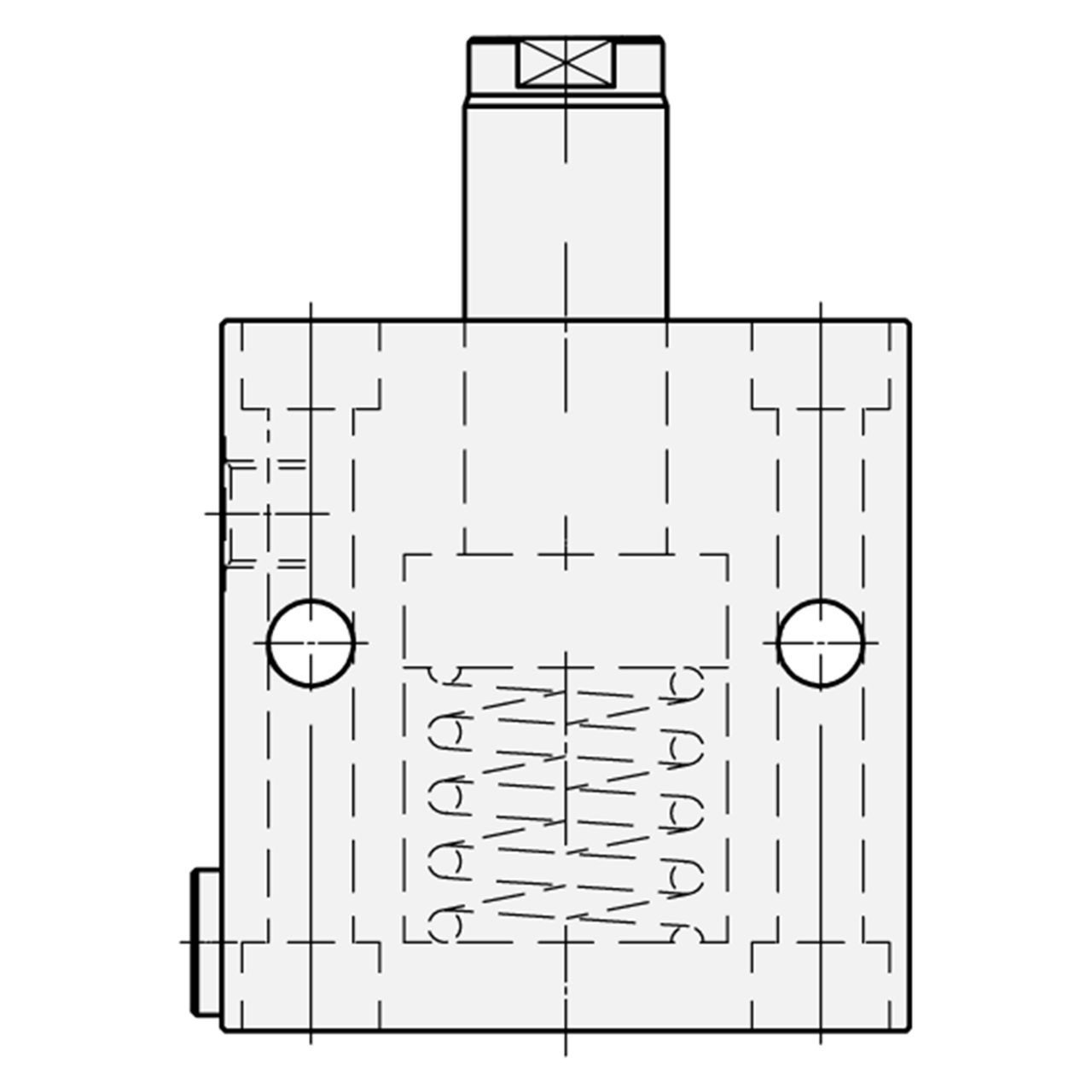

Clamping Action

Applying fluid pressure retracts the plunger. Spring return to extended position.

Mounting & Fluid Connection

Several possible mounting methods: 1) insert four socket-head cap screws from the plunger end, through the four counterbored holes parallel to the plunger; 2) insert four socket-head cap screws from the bottom end, through the four counterbored holes parallel to the plunger; 3) insert two socket-head cap screws through the two broad-side holes perpendicular to the plunger (drilled by the user in the locations shown on Dimensions page). Method 3 requires that the Block Cylinder be backed up for pressures over 2300 psi by a rectangular strip or dowel pins with a height at least 1/3 of the B dimension.1/4" BSPP port. Do not use NPT fittings.

Optional Viton Seals

For high-temperature applications (212 Degree to 300 Degree F), we offer Viton seals in all sizes. Viton seals have a slightly shorter service life. Please contact factory for more information.

Material

Parts Specification
