Carr Lane CLR-1829-720E00 | 2 Size x 740 lbs Clamping Force Hinge Clamp

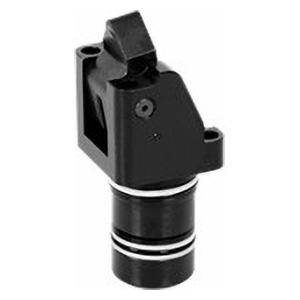

Product Information

3600 psi max Single and Double Acting Hinge Clamps have a sturdy linkage configuration that moves the clamping arm forward as it pivots into clamping position. This specially designed linkage allows the clamp to exert nearly perfectly vertical clamping force. The clamping arm retracts fully for clear loading from above. Ideal for clamping in narrow recesses. Durable, economical clamp with an easy-to-clean mechanism and standard metallic wiper. The top-flange cartridge-type version shown here is designed specifically for space-saving manifold mounting. Available in four clamp sizes, double acting only, each with either a standard clamping arm with swivel contact bolt, a long clamping arm for customization, or without a clamping arm for a user-manufactured arm. Clamping force at 3600 psi for single-acting clamps with standard clamping lever:            560 lbs            740 lbs          1300 lbs          2200 lbs

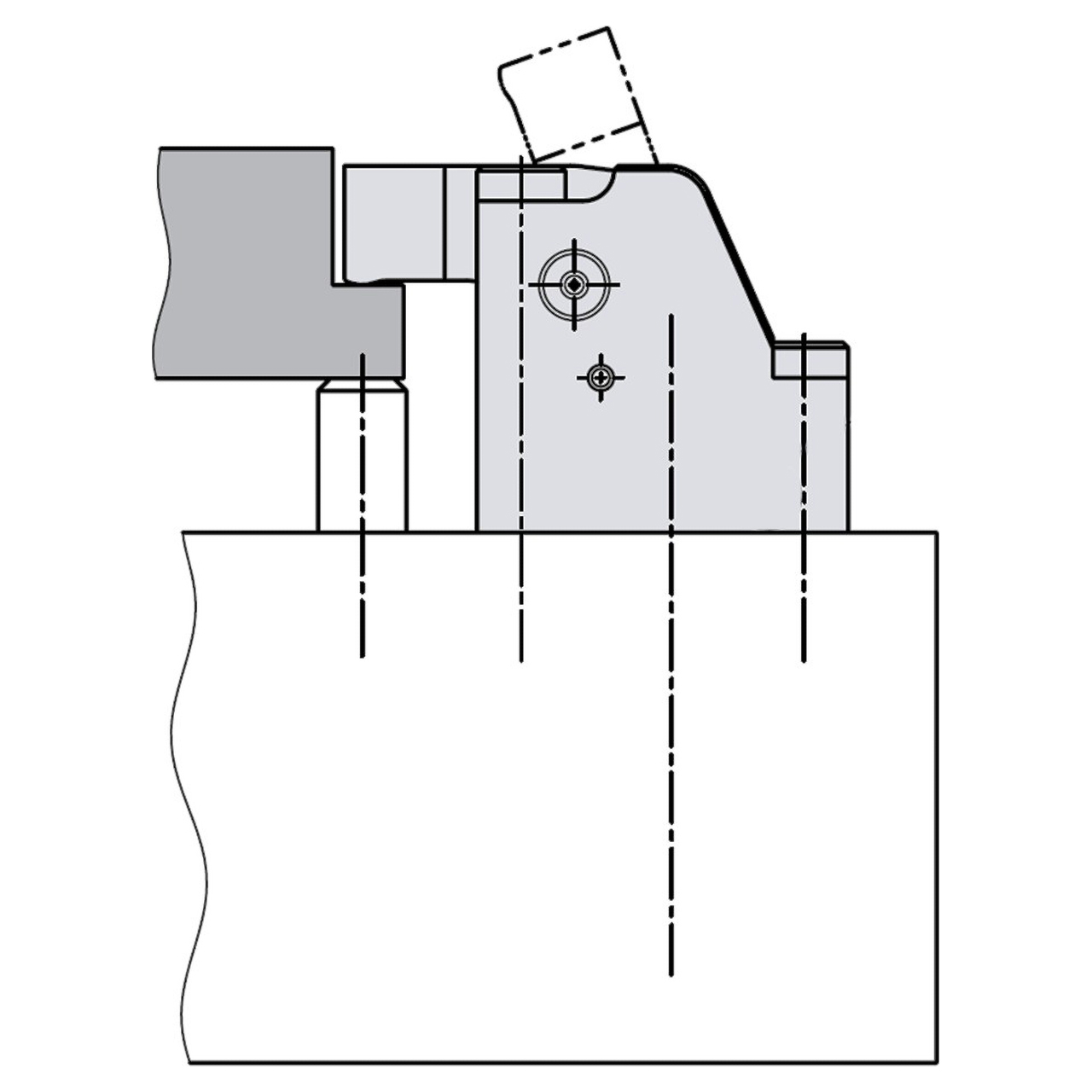

Clamping Action

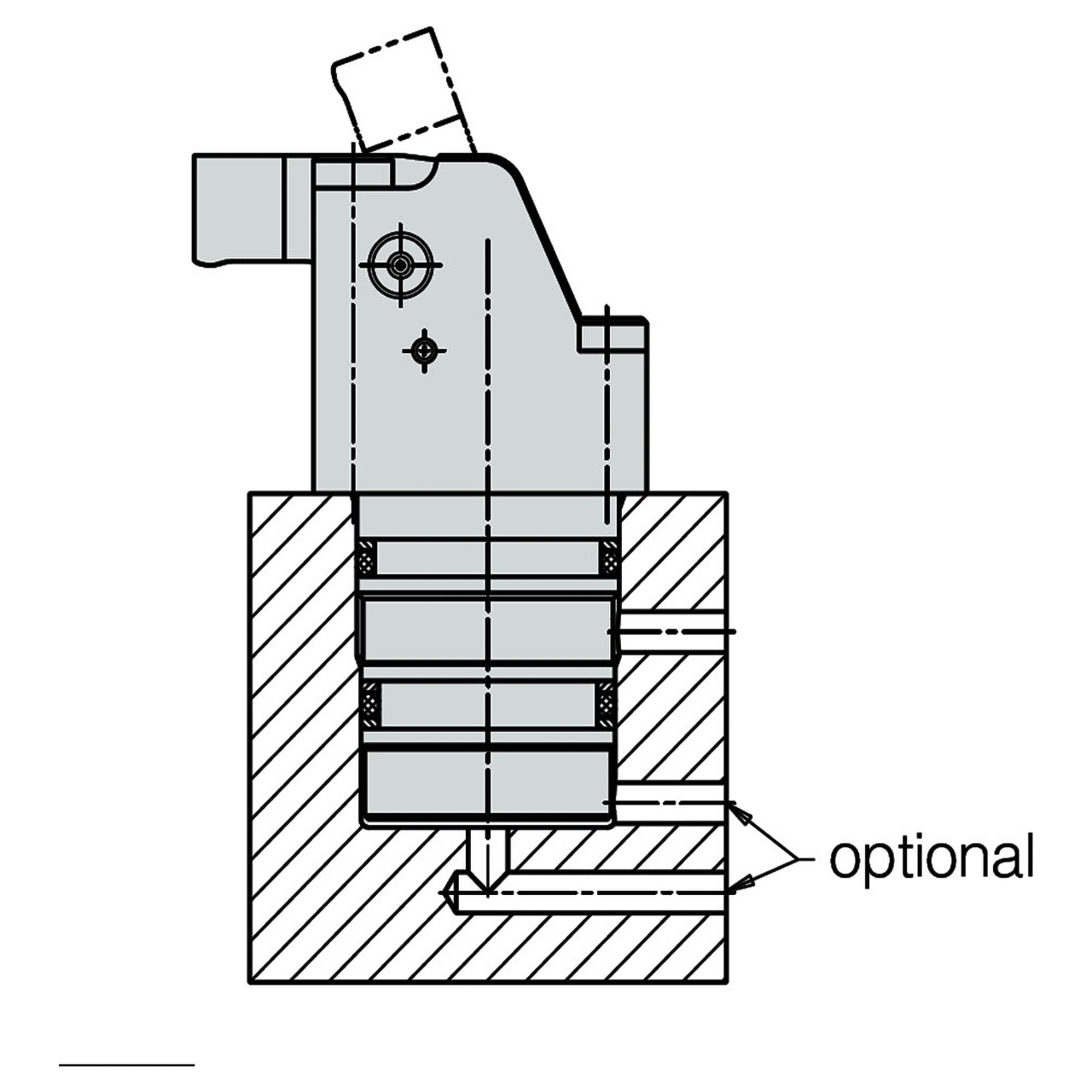

Mounting & Fluid Supply

Single Acting Double Acting

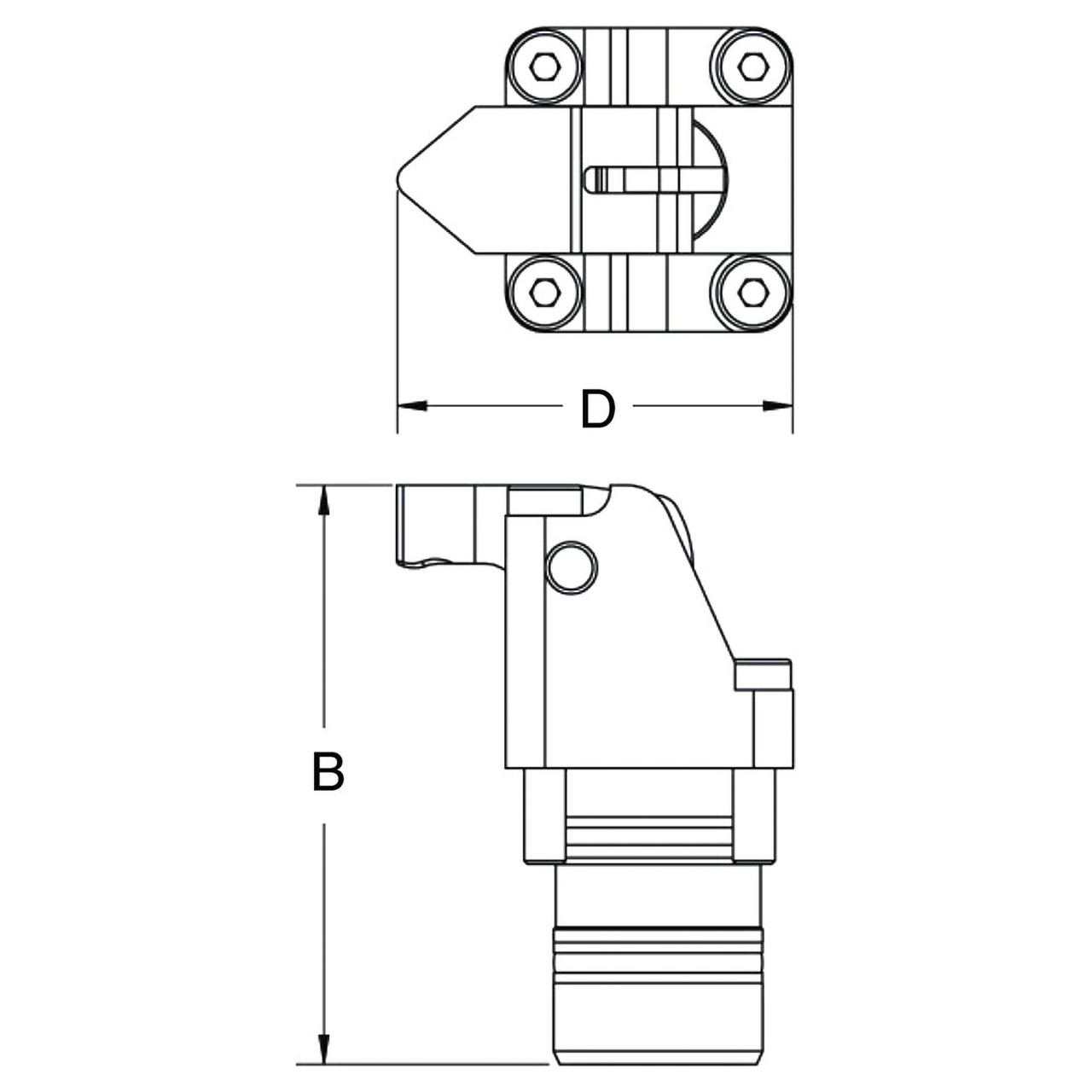

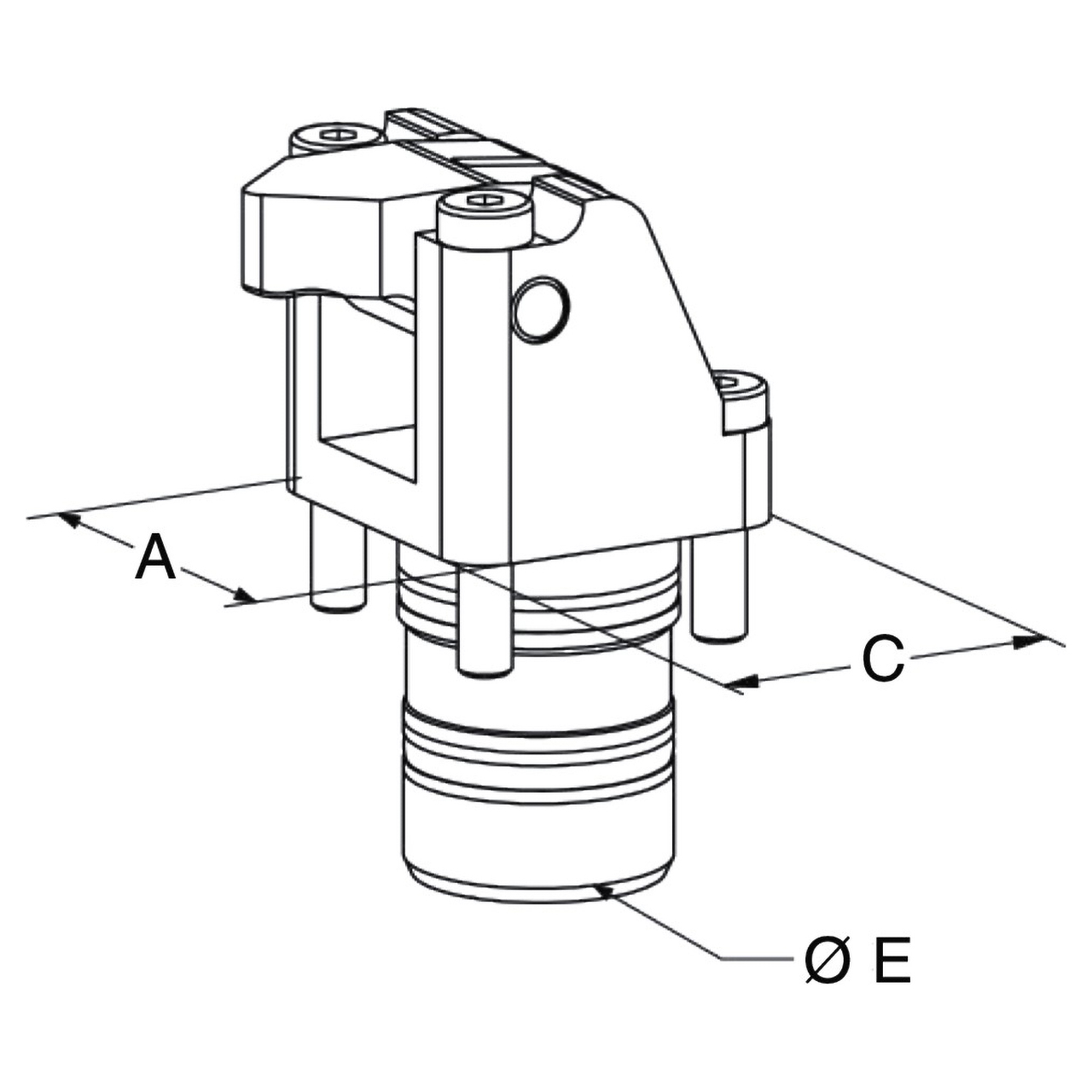

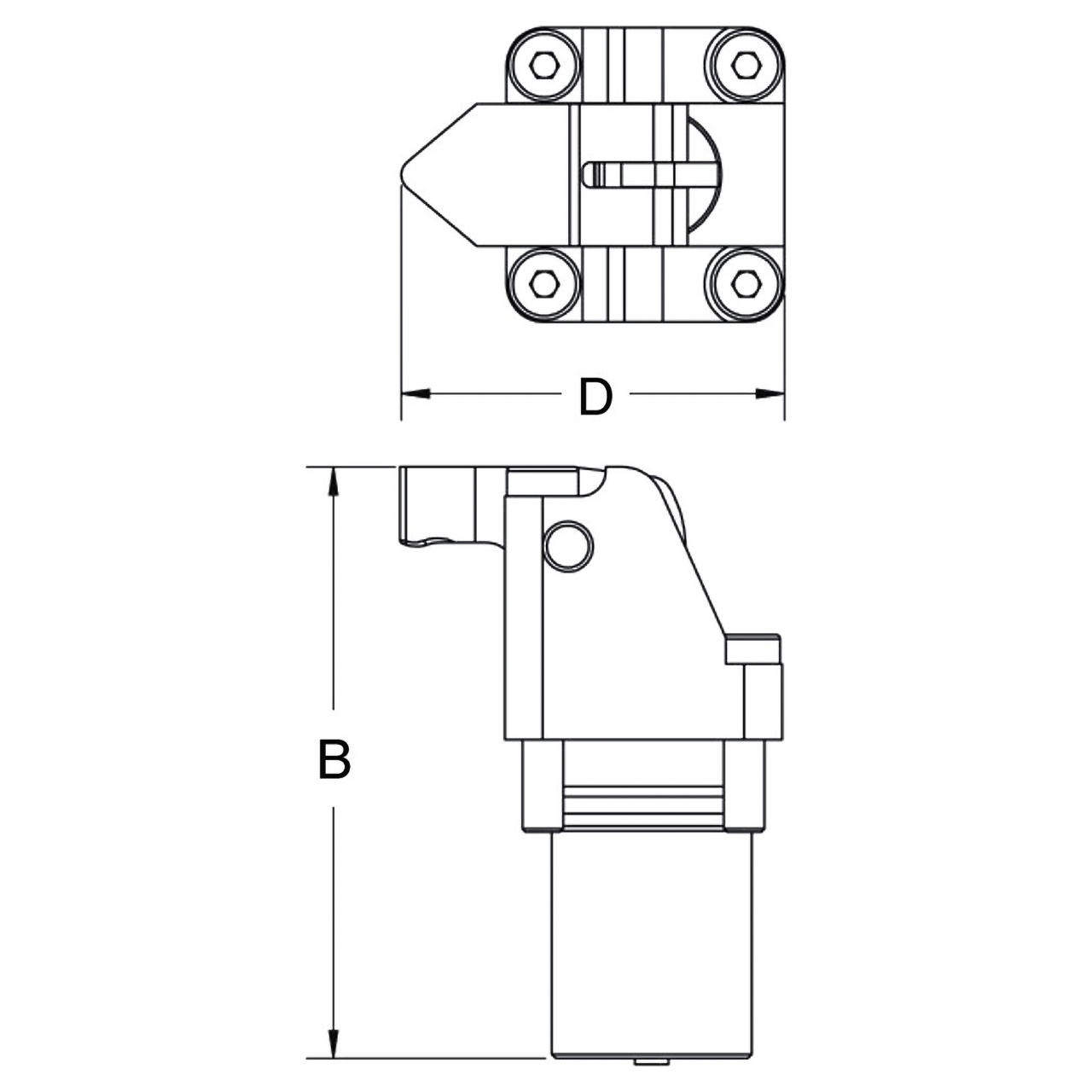

Material

Parts Specification
