Carr Lane CLR-3141-928 | Pressure Switch

Product Information

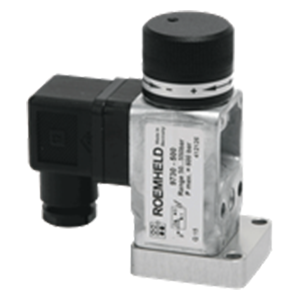

7250 psi max Pressure Switches are used to signal the presence or absence of hydraulic pressure electrically, by opening or closing a microswitch. Applications include pressure-dependent machine control, ensuring proper clamping pressure before machining starts, and shutting off machines if pressure drops below a set level. The Pressure Switch is shown here with the standard DIN 43650 electrical connector included (Part No. CLR-3141-012). This connector can be indexed 4 x 90 Degree. Pressure Switches are available in three pressure setting ranges:            75 - 1885 psi          725 - 5075 psi          725 - 7975 psi

Mounting

Manifold Mounting: For manifold mounting, the mounting surface must be ground flat to ensure proper O-ring sealing. Fasten clamp with two socket-head cap screws. O-ring and cap screws are furnished. Optional Mounting Base: To install using standard fittings, order the optional mounting base, CLR-3534-051, which has a 1/4" BSPP port. Do not use NPT fittings.

Parts Specification
