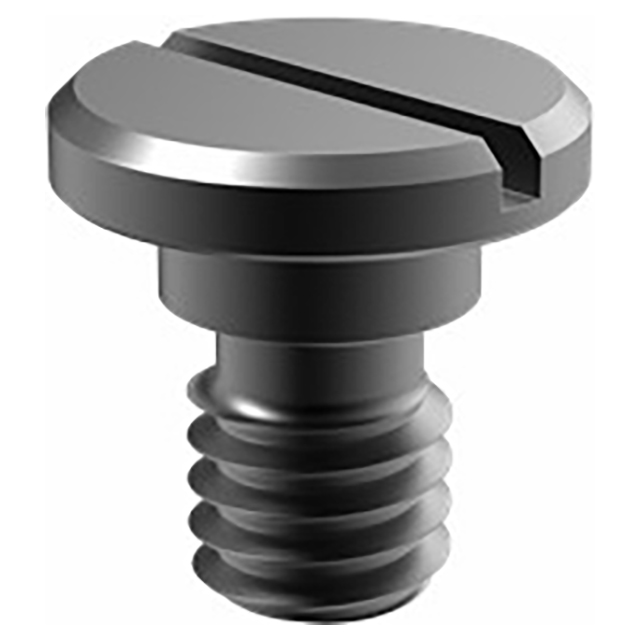

Lockscrews-Metric
Lockscrews are the most popular locking device for metric renewable drill bushings. Use on either the "slip" side or the "fixed" side of a slip/fixed renewable bushing. Lockscrews are simple, strong, compact, and economical.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS | ||
| Mild Steel | - | Black Oxide | ✔ | ✔ |
| A (mm) | B Diameter (mm) | C Diameter (mm) | E (mm) | F (mm) | Thread | Thread Pitch (mm) |
| 15mm | 7.5mm | 13mm | 6mm | 3.3mm | M5 | 0.8mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
