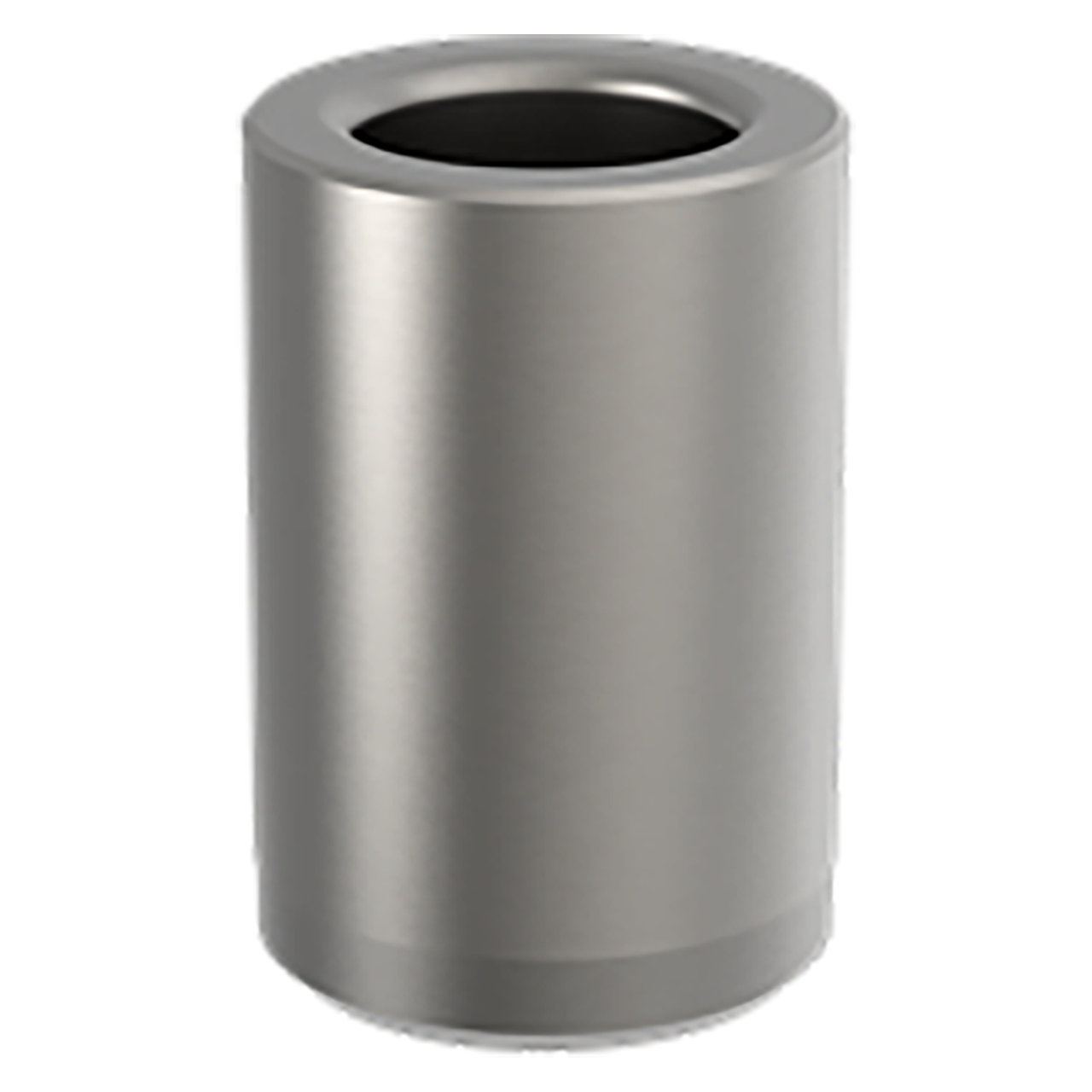

Carr Lane P-13-16-.0935 | 13/64" OD x 1" Length Press-Fit Bushing

Press-Fit Bushings (P)

P style drill bushings are the most-popular and least-expensive type of drill bushing. Type P bushings are permanently pressed into the jig plate, usually flush with the top surface. P style drill bushings are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. Type P bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads.

Application Information

P bushings are permanently pressed into the jig plate, usually flush with the top surface.

ID Tolerance

From #80 to 1/4"          +0.0001/+0.0004

Over 1/4 to 3/4"            +0.0001/+0.0005

Over 3/4 to 1-1/2"        +0.0002/+0.0006

Over 1-1/2 and up     +0.0003/+0.0007

From #80 to 1/4"          +0.0005/+0.0008

Over 1/4 to 3/4"            +0.0006/+0.0010

Over 3/4 to 1-1/2"        +0.0008/+0.0012

OD Tolerance

5/32 to 13/64"        +0.0016/+0.0012

5/32 to 13/64"          +0.010/+0.005

No-Counterbore Option on Long Bushings

Extremely long bushings with a small ID size are counterbored according to ANSI standards for proper drill-bearing length to eliminate binding and heat buildup. Add "-NCB" for applications that require these bushings without a counterbore.

Material

Parts Specification
