Colton Cutting Tools 61174 | Carbide End Mill 4 Flute Square End Stub CCT-1 Coated 5/32" Diameter x 3/8" LOC x 3/16" Shank x 2" OAL

$21.17 $9.83
(You save $11.34)
Brand:
Colton Industrial Tools
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1600"
Mill Diameter (mm):
3.97mm
Number of Flutes:
4
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3800"
Length of Cut (mm):
9.53mm
Finish/Coating:
CCT-1
Shank Diameter (Inch):
5/32"
Shank Diameter (Decimal Inch):
0.1600"
Shank Diameter (mm):
3.97mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Material:
Carbide
End Type:
Square
Helix Angle:
30 Degree
SKU:
25180386
UPC:
Availability:
Ships same business day if ordered by 12:30PM PT
Weight:
0.06 LBS
Shipping:
Free Shipping

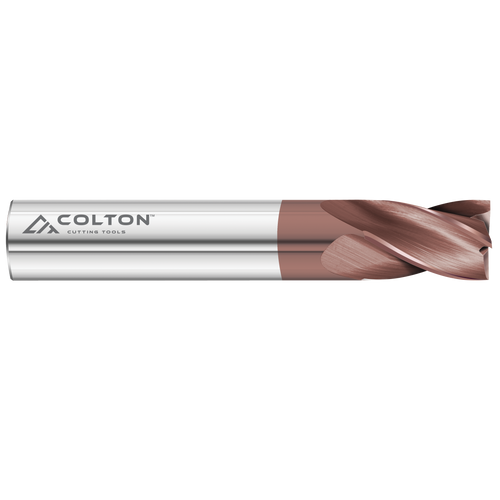

Image of a Colton 4 flute, square end stub end mill.

Made in the USA

Colton Cutting Tools carbide end mills are 100% manufactured in the USA by an ISO-certified facility, using premium grinding wheels and the finest grades of carbide found in the industry.

Attentiveness to edge prep, polishing, and post-production inspection yield pristine geometry and tight tolerances. Colton customers can depend on consistent performance that will reduce machining time, increase part count, and generate tremendous cost savings over the competition.

Advanced CCT-1 Coating

Colton carbide end mills offer an advanced CCT-1 coating. These coated end mills are often used when little or no coolant is being used, due to their unique ability to better handle high heat.

CCT-1 is a premier high performance coating targeting your toughest applications. Whether you are cutting cold roll steel or the most advanced aerospace alloys, CCT-1 will help you get the job done.

This proprietary blend of ingredients is designed to give you better performance in all cutting applications. High hardness, high elasticity, low friction coating excels in stainless steels and other high nickel-based alloys. Whether you are roughing or finishing, CCT-1 is up to the task.

Why choose Colton Cutting Tools with CCT-1

Save money on high-performance tooling, while still retaining the benefits of a high-performance coating. CCT-1 coated tools deliver incredible value and consistent performance.

Variety of end and length options

Offered in both ball and square end options, as well as stub, standard, and long lengths.

  • CNC ground in the USA
  • Premium Sub-Micrograin Solid Carbide
  • Engineered for high performance in steel, stainless steel, titanium, and most other difficult to machine materials
  • Premium CCT-1 tool coating offers added lubricity and high temperature resistance resulting in faster speeds/feeds and increased tool life
  • 30 Degree Helix, 4 Flute, Square End, Stub
  • h6 Shank tolerance for use with shrink-fit and other high performance tool holders
  • Shank Diameter: 3/16"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Colton Industrial Tools
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1600"
Mill Diameter (mm):
3.97mm
Number of Flutes:
4
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3800"
Length of Cut (mm):
9.53mm
Finish/Coating:
CCT-1
Shank Diameter (Inch):
5/32"
Shank Diameter (Decimal Inch):
0.1600"
Shank Diameter (mm):
3.97mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Material:
Carbide
End Type:
Square
Helix Angle:
30 Degree
