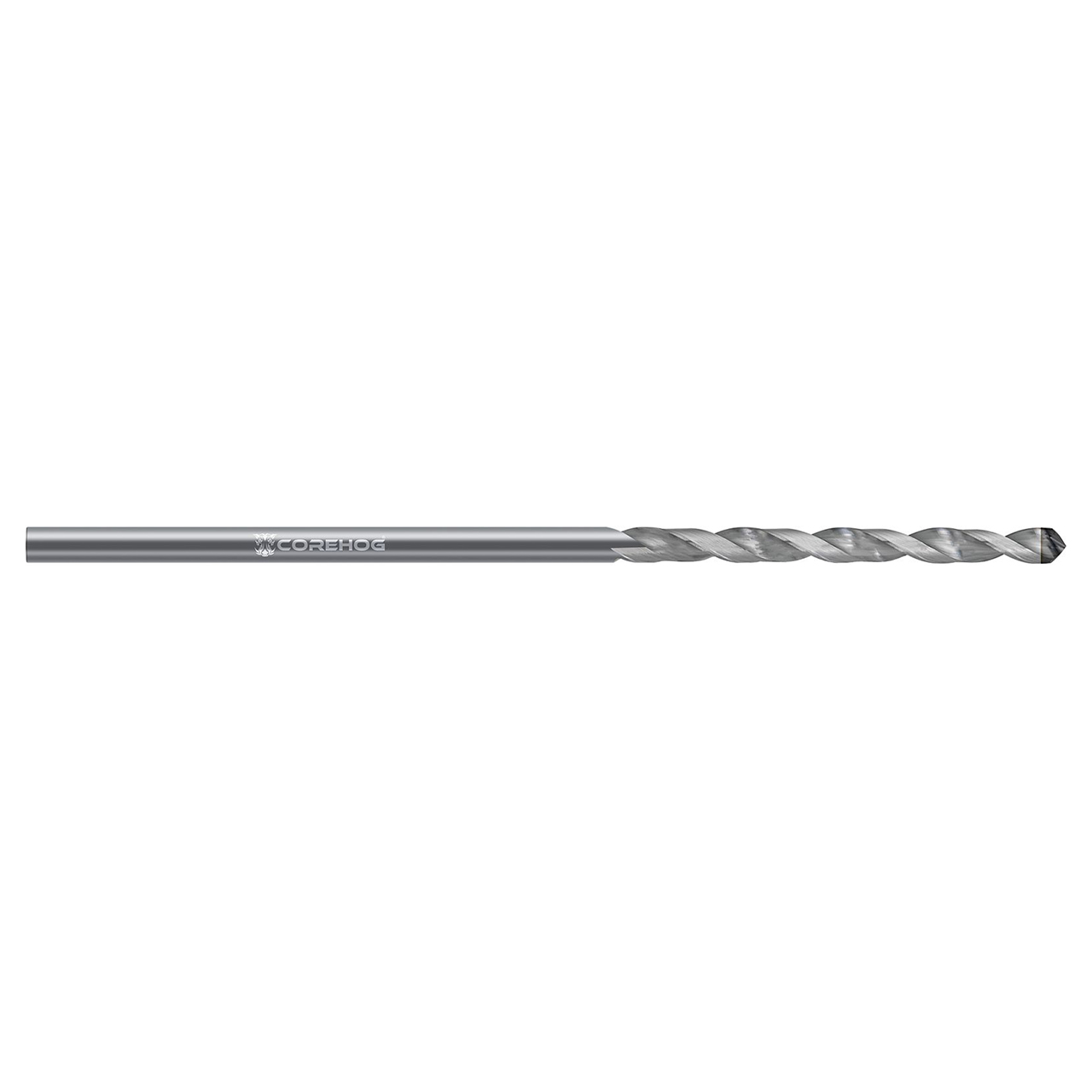

CoreHog C34314 | 0.2031" (13/64) Drill Diameter x 0.2031" (13/64) Shank x 1.5000" (1-1/2) Flute Length 2 Flute PCD Diamond Brazed on Solid Carbide Jobber Length Drill Bit

$596.40
Brand:
CoreHog
Drill Bit Size (Wire):
13/64
Drill Point Angle:
118 Degree
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Finish/Coating:
Polycrystalline Diamond Coated
SKU:
10245144
UPC:
Weight:
1.23 LBS
Shipping:
Free Shipping

This CoreHog offering of 8 facet drills feature a PCD diamond brazed onto a solid carbide body, providing a significant boost in tool life, and are suitable for use in a wide range of composites and plastics.

Features
  • 8 Facet design efficiently spreads out tool pressure throughout the cut, reducing delamination on exit
  • High strength design maximizes MRR
  • Suitable for use in a wide range of composites and plastics
  • Precision manufactured in Italy

Product Specifications
Manufacturer Part NumberC34314
Drill Diameter (Inch)0.2031" (13/64)
Flute Length (Inch)1.5000" (1-1/2)
Shank Diameter (Inch)0.2031" (13/64)
Secondary Point Angle (Degree)80 Degree
Overall Length (Inch)4.000" (4)
Size13/64
MetricN
Point Angle (Degree)118 Degree
CoatingPCD
SubstratePCD diamond brazed on solid carbide
Number of Flutes2
