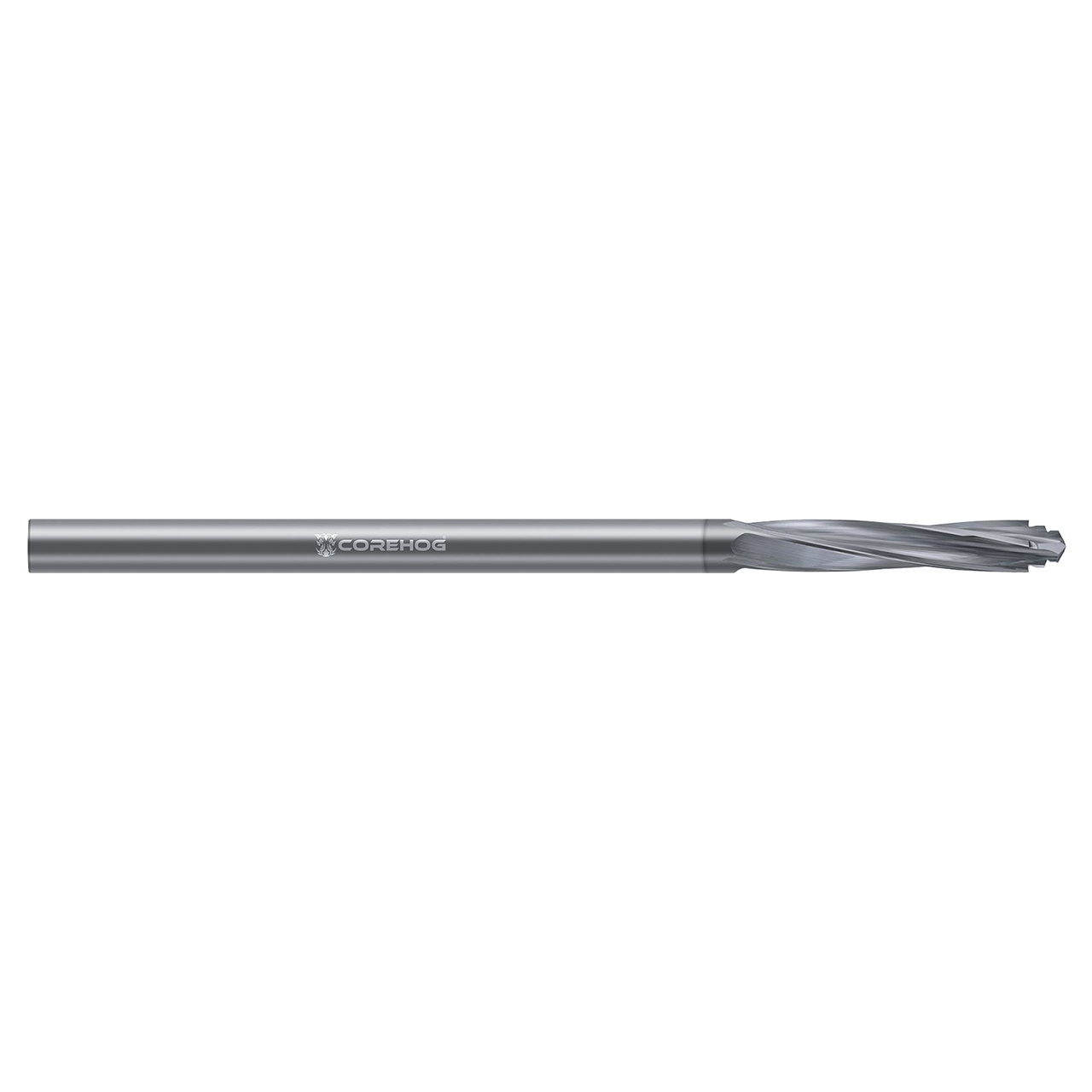

Suitable for use in a wide range of composites and plastics, CoreHog's fully stocked offering of helical step drills are designed to produce tight toleranced holes with minimal tool pressure.
Features:- Proprietary multi-stepped nose design spreads out load, eliminating delamination and burr on exit
- Designed to produce tight toleranced holes with minimal tool pressure
- Suitable for use in a wide range of composites and plastics
- Engineered to improve hole finish
- For use in both hand and CNC operations
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | C45128 |
| Drill Diameter (Inch) | 0.2500" (1/4) |
| Flute Length (Inch) | 1.5000" (1-1/2) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Overall Length (Inch) | 6.000" (6) |
| Size | 1/4 |
| Metric | N |
| Coating | Uncoated |
| Substrate | solid carbide |
| Number of Flutes | 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Finish/Coating:
Uncoated
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
