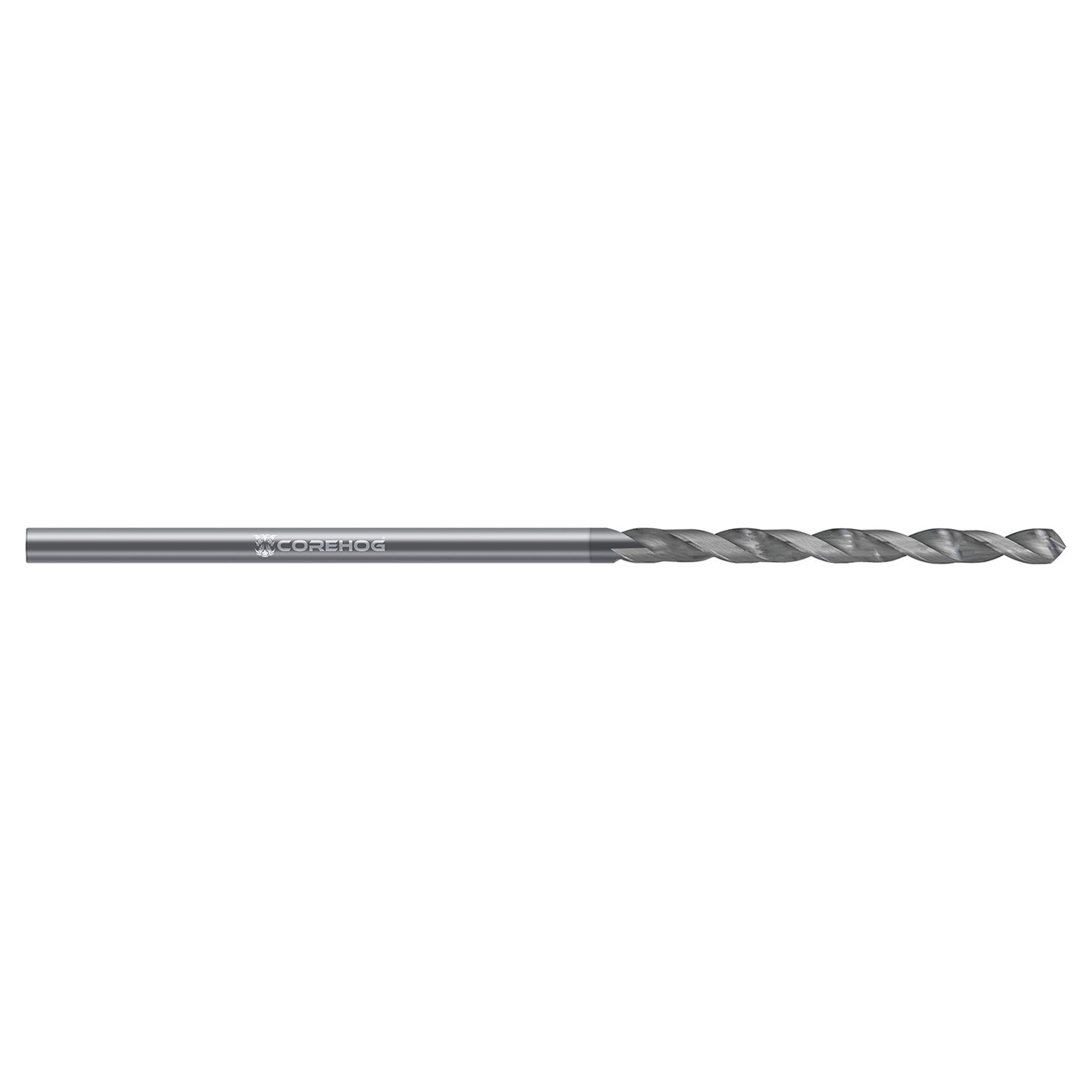

Suitable for use in a wide range of composites and plastics, CoreHog's offering of 8 facet drills efficiently spreads out the tool pressure throughout the cut, eliminating delamination on exit.
Features- High strength design maximizes MRR
- For use in hand and CNC operations
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | C47378 |
| Drill Diameter (Inch) | 0.1563" (5/32) |
| Flute Length (Inch) | 1.5000" (1-1/2) |
| Shank Diameter (Inch) | 0.1563" (5/32) |
| Secondary Point Angle (Degree) | 80 Degree |
| Overall Length (Inch) | 4.000" (4) |
| Size | 5/32 |
| Metric | N |
| Point Angle (Degree) | 118 Degree |
| Coating | Uncoated |
| Substrate | solid carbide |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Drill Bit Size (Wire):
5/32
Drill Point Angle:
118 Degree
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Finish/Coating:
Uncoated
