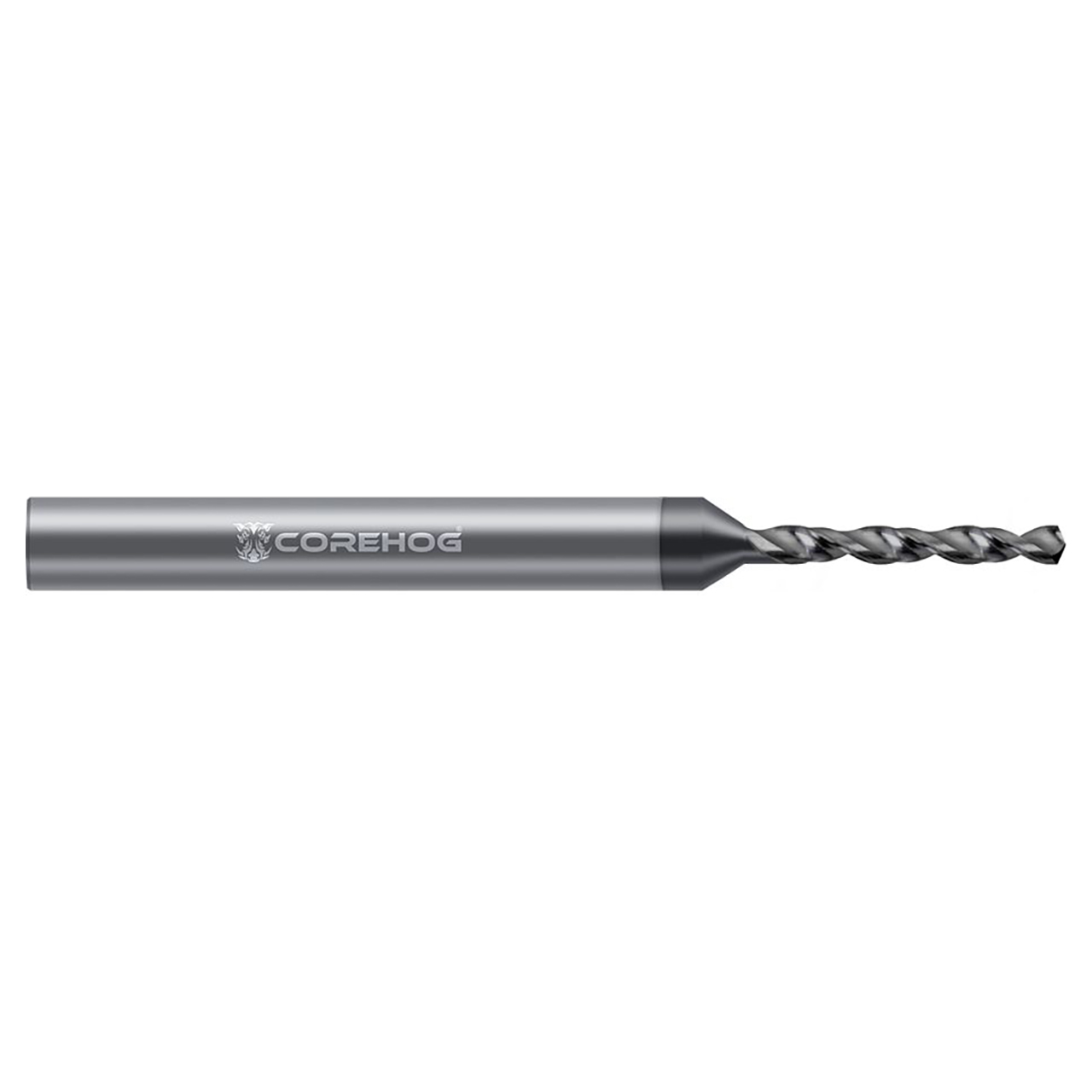

CoreHog C67626 | 0.0550" Drill Diameter x 0.1250" (1/8) Shank x 0.4130" Flute Length 2 Flute Diamond Like Carbon Coated Solid Carbide Miniature Micro Drill Bit

$25.60
Brand:
CoreHog
Drill Bit Size (Wire):
#54
Flute Length (Inch):
13/32"
Flute Length (Decimal Inch):
0.4130"
Flute Length (mm):
10.49mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Finish/Coating:
Diamond Like Carbon Coated
SKU:
25240854
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Engineered with a 130 degree drill point, these CoreHog Miniature Drills are engineered for miniature drilling applications in a wide range of composite and plastic materials.

Features:

  • 130 Degree drill point
  • Solid carbide
  • DLC coating for improved lubricity and wear resistance
  • Provides excellent performance in miniature drilling applications for a wide range of composite and plastic materials
  • CNC ground in Germany

Product Specifications
Manufacturer Part NumberC67626
Drill Diameter (Inch)0.0550"
Flute Length (Inch)0.4130"
Shank Diameter (Inch)0.1250" (1/8)
Overall Length (Inch)1.500" (1-1/2)
Size#54
Assembly Size Pairing#54
CoatingDiamond Like Carbon
SubstrateSolid Carbide
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
CoreHog
Drill Bit Size (Wire):
#54
Flute Length (Inch):
13/32"
Flute Length (Decimal Inch):
0.4130"
Flute Length (mm):
10.49mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Finish/Coating:
Diamond Like Carbon Coated
