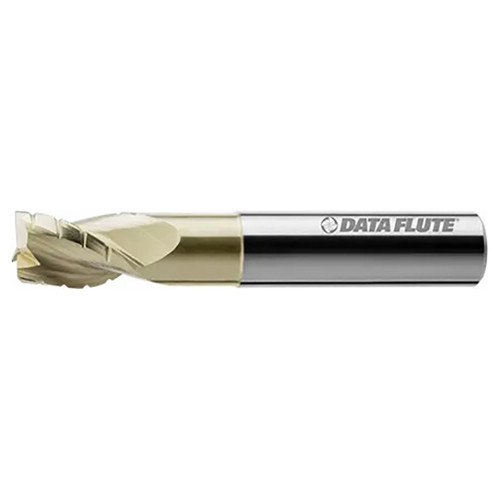

ALDH-C series combines the performance of the ALDH series with a truncated knuckle form to manage chips and Horse Power. It is designed for freer cutting without sacrificing work piece surface finishes. This unique O.D. form also aids in chip control and management in gummy, non-ferrous materials. The tools are available from stock in stub and standard lengths with coatings to match your particular applications.
Features:
- High Performance Carbide
- Double Helix
- Truncated Geometry
Product Specifications
| Manufacturer Part Number | ALDHRNC30750-030 |
| Diameter (mm) | 0.75mm |
| Shank Diameter (mm) | 0.75mm |
| Length of Cut (Decimal Inch) | 1.000" |
| Overall Length (Decimal Inch) | 4.000" |
| Radius (mm) | 0.03mm |
| Coating | Uncoated |
| LBS (Decimal Inch) | 2.000" |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
DATA FLUTE
Diameter (mm):
0.75mm
Shank Diameter (mm):
0.75mm
Length of Cut (Decimal Inch):
1.0000"
Overall Length (Decimal Inch):
4.0000"
Radius (mm):
0.03mm
Finish/Coating:
Uncoated
interval quantity:
1
