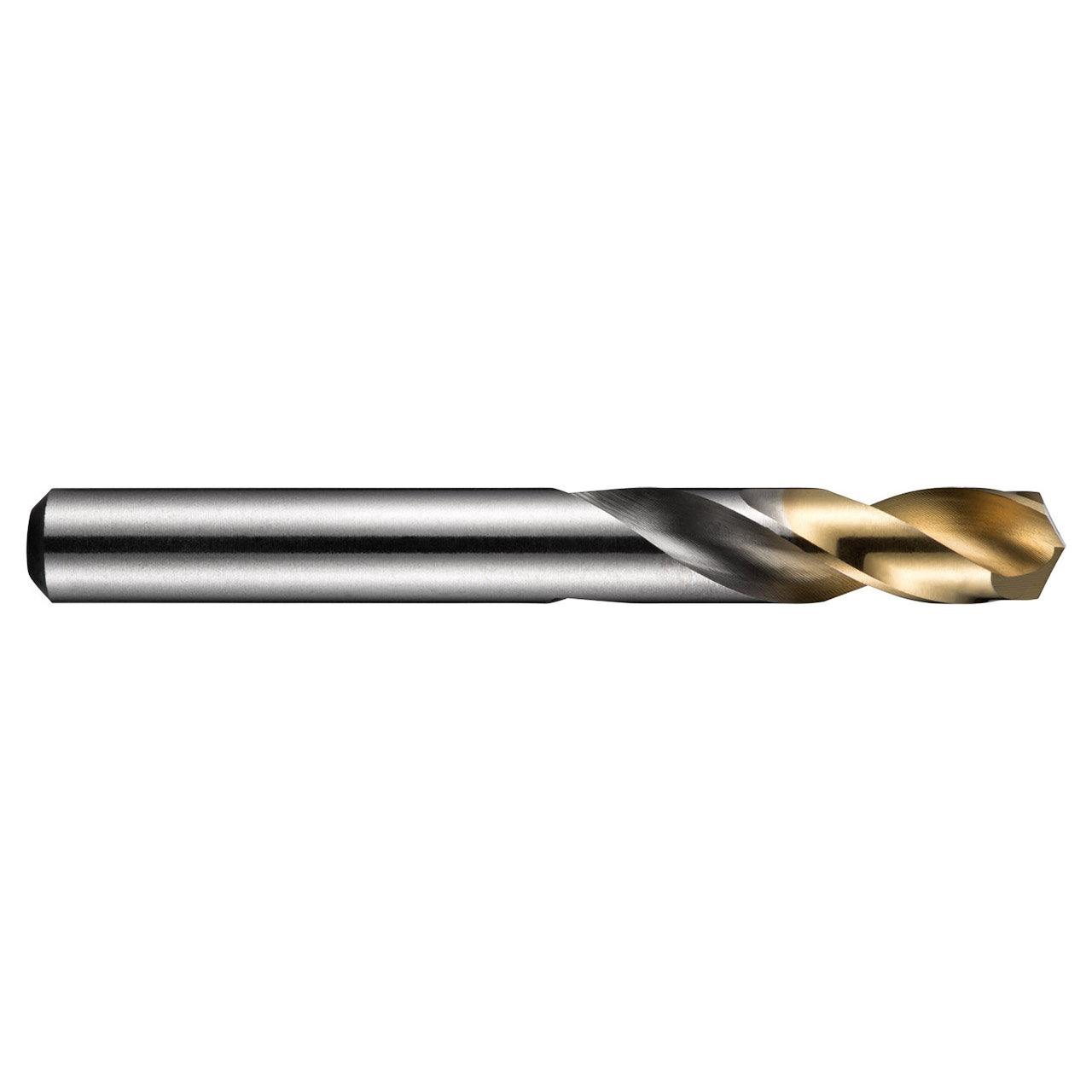

Dormer A0223/64 | 0.0469" Diameter x 1.378" OAL Bright Coated Screw Machine Length Drill Bit

$2.80
Brand:
Dormer
Drill Bit Size (Inch):
3/64"
Drill Bit Size (Decimal Inch):
0.0469"
Drill Bit Size (mm):
1.19mm
Drill Point Angle:
135°
Flute Length (Inch):
33/64"
Flute Length (Decimal Inch):
0.5100"
Flute Length (mm):
13mm
Overall Length (Inch):
1-3/8"
Overall Length (Decimal Inch):
1.3780"
Overall Length (mm):
35mm
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right Hand
SKU:
10111816
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

A022 stub drills are very versatile and are suitable for a wide variety of hand held and machine applications. They are manufactured from premium high speed steel and can be used for drilling a number of different materials including steels, stainless steels and aluminium. With a titanium nitride coating, you get better performance when drilling harder materials and a longer tool life. The specially designed 135° split point is a great aid to self-centering when drilling by hand-so no more wandering all over the surface of the workpiece-and you also get a more accurate hole with a better quality of finish.


Product Specifications
EDP Number0600559
Usable Length2.5
Connection Diameter (Inch)0.0469"
Cutting Diameter (Inch)0.0469"
Overall Length (Inch)1.378"
Point Angle135
Material CodeHSS
Drill LengthStub
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Dormer
Drill Bit Size (Inch):
3/64"
Drill Bit Size (Decimal Inch):
0.0469"
Drill Bit Size (mm):
1.19mm
Drill Point Angle:
135°
Flute Length (Inch):
33/64"
Flute Length (Decimal Inch):
0.5100"
Flute Length (mm):
13mm
Overall Length (Inch):
1-3/8"
Overall Length (Decimal Inch):
1.3780"
Overall Length (mm):
35mm
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right Hand
