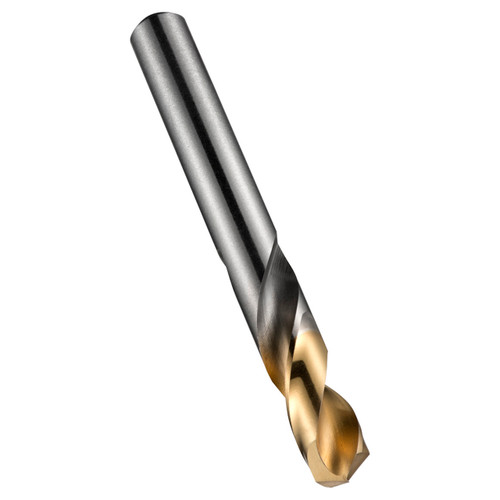

Dormer A0226.5 | 0.2559" Diameter x 2.7559" OAL Bright/TiN Coated Screw Machine Length Drill Bit

$5.74
Brand:
Dormer
Drill Bit Size (Inch):
1/4"
Drill Bit Size (Decimal Inch):
0.2559"
Drill Bit Size (mm):
6.5mm
Drill Point Angle:
135°
Flute Length (Inch):
1-7/32"
Flute Length (Decimal Inch):
1.2200"
Flute Length (mm):
31mm
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7559"
Overall Length (mm):
70mm
Material:
HSS
Finish/Coating:
Bright/TiN
Cutting Direction:
Right Hand
SKU:
10111745
Weight:
0.52 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

A022 stub drills are very versatile and are suitable for a wide variety of hand held and machine applications. They are manufactured from premium high speed steel and can be used for drilling a number of different materials including steels, stainless steels and aluminium. With a titanium nitride coating, you get better performance when drilling harder materials and a longer tool life. The specially designed 135° split point is a great aid to self-centering when drilling by hand-so no more wandering all over the surface of the workpiece-and you also get a more accurate hole with a better quality of finish.


Product Specifications
EDP Number0589489
Usable Length2.5
Connection Diameter (Inch)0.2559"
Cutting Diameter (Inch)0.2559"
Overall Length (Inch)2.7559"
Point Angle135
Material CodeHSS
Drill LengthStub
Cutting DirectionRight Hand
CoatingBright/TiN
Surface ColorBright & Gold

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
