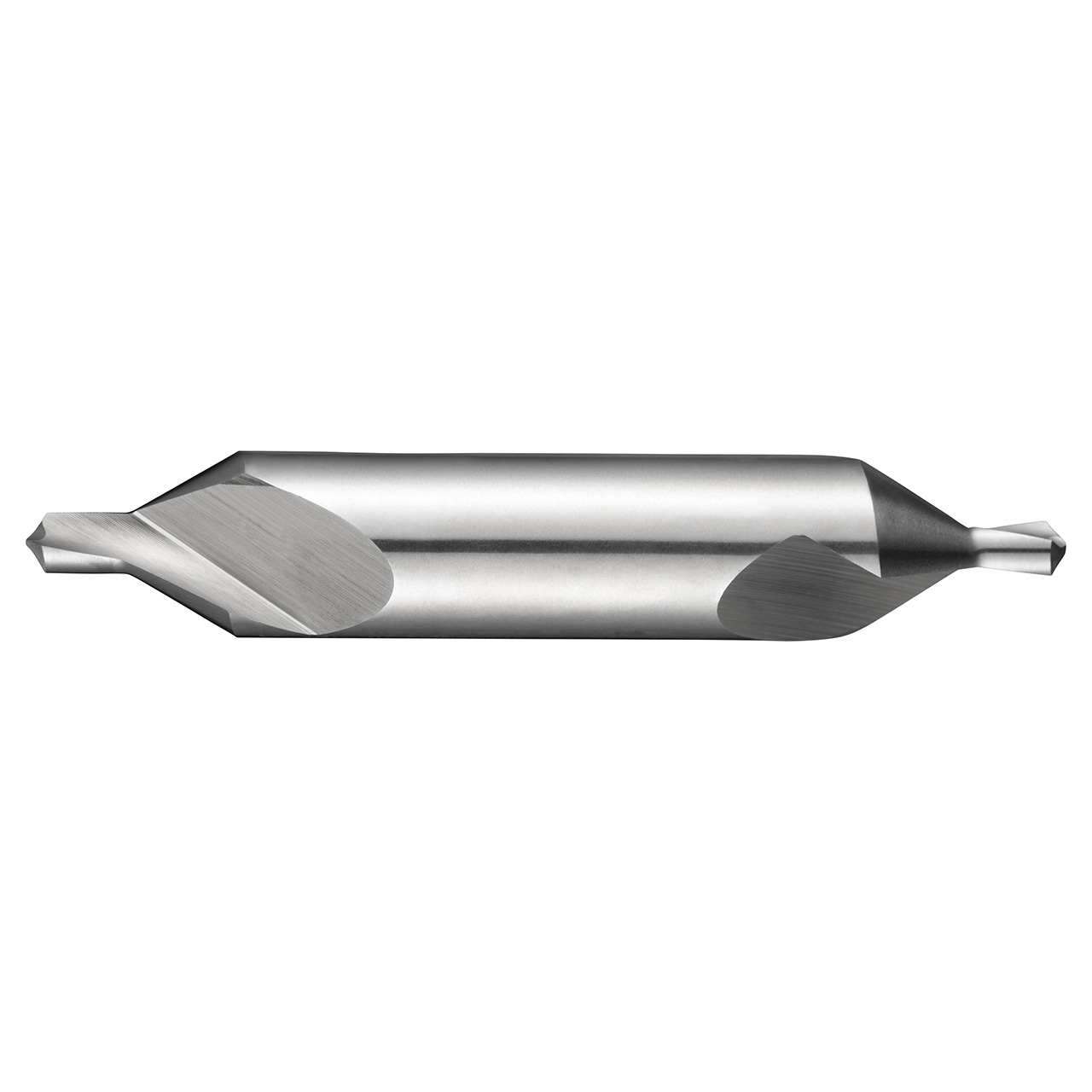

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 0.75mm drill diameter, a body diameter of 3.50mm and an overall length of 35mm, according to Dormer standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron.
Product Specifications
| EDP Number | 0215098 |
| Usable Length | 1 |
| Connection Diameter (Inch) | 0.1378" |
| Cutting Diameter (Inch) | 0.0295" |
| Overall Length (Inch) | 1.378" |
| Point Angle | 122 |
| Material Code | HSS |
| Drill Length | Short |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Drill Point Diameter (Inch):
1/32"
Drill Point Diameter (Decimal Inch):
0.0295"
Drill Point Diameter (mm):
0.75mm
Included Angle:
122°
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Overall Length (Inch):
1-3/8"
Overall Length (Decimal Inch):
1.3780"
Overall Length (mm):
35mm
