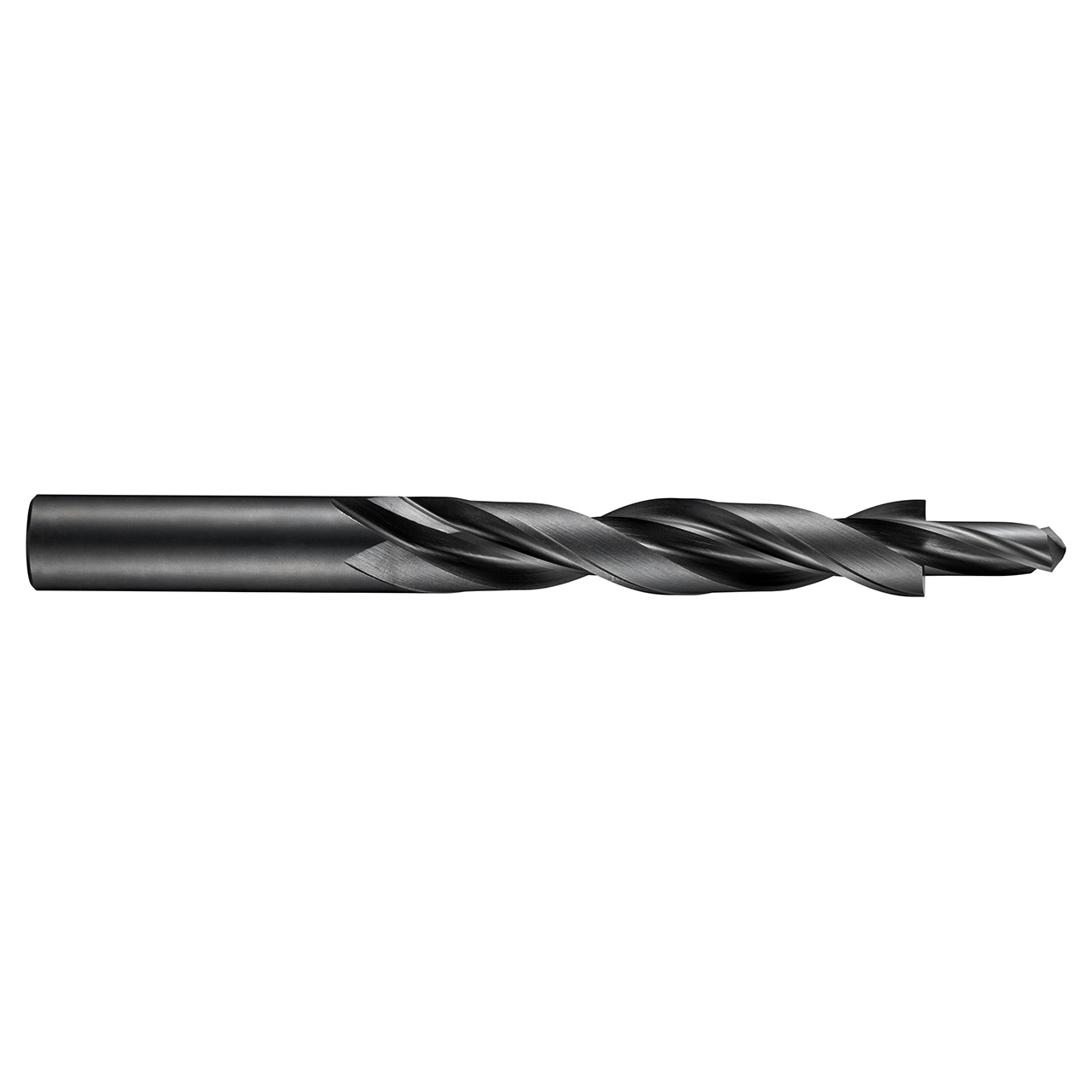

Subland drill with 180 Degree included step angle, straight shank and a drilling-pilot diameter of 5.50mm with a length of 13.00mm, a large diameter of 10.00mm and an overall length of 133mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M5 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron.
Product Specifications
| EDP Number | 0034460 |
| Usable Length | 4 |
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.2165" |
| Overall Length (Inch) | 5.2362" |
| Thread Diameter (mm) | M5mm |
| Point Angle | 118 |
| Material Code | HSS |
| Drill Length | Long |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Surface Color | Black |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Shank Size (Inch):
25/64"
Shank Size (Decimal Inch):
0.3937"
Shank Size (mm):
10mm
Finish/Coating:
Steam Tempered
Material:
HSS
Overall Length (Inch):
5-15/64"
Overall Length (Decimal Inch):
5.2362"
Overall Length (mm):
133mm
