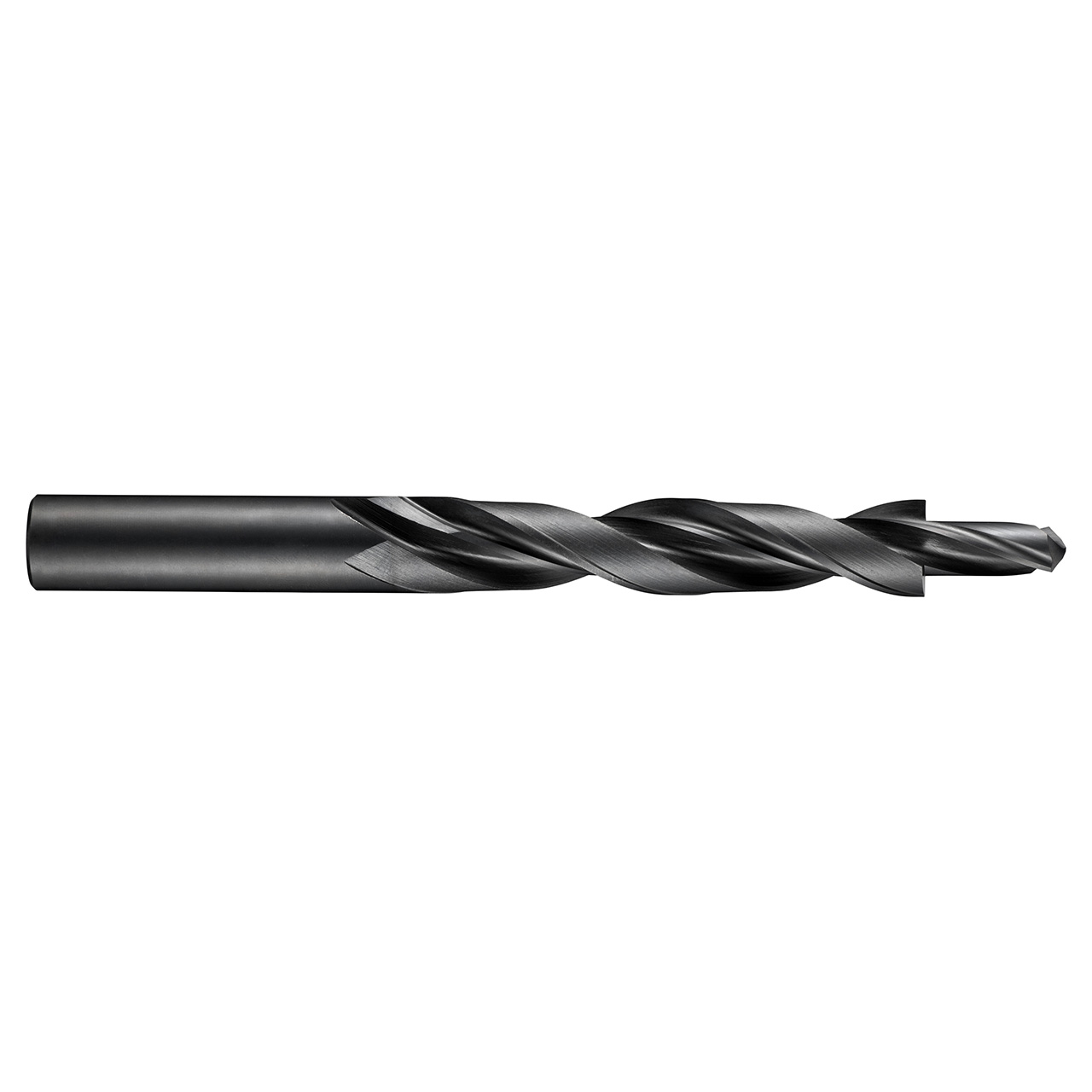

Subland drill with 180° included step angle, straight shank and a drilling-pilot diameter of 9.00mm with a length of 19.00mm, a large diameter of 15.00mm and an overall length of 169mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M8 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron.
Product Specifications
| EDP Number | 0034484 |
| Usable Length | 4 |
| Connection Diameter (Inch) | 0.5906" |
| Cutting Diameter (Inch) | 0.3543" |
| Overall Length (Inch) | 6.6535" |
| Thread Diameter (mm) | M8mm |
| Point Angle | 118 |
| Material Code | HSS |
| Drill Length | Long |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Surface Color | Black |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Shank Size (Inch):
19/32"
Shank Size (Decimal Inch):
0.5906"
Shank Size (mm):
15mm
Finish/Coating:
Steam Tempered
Material:
HSS
Overall Length (Inch):
6-21/32"
Overall Length (Decimal Inch):
6.6535"
Overall Length (mm):
169mm
