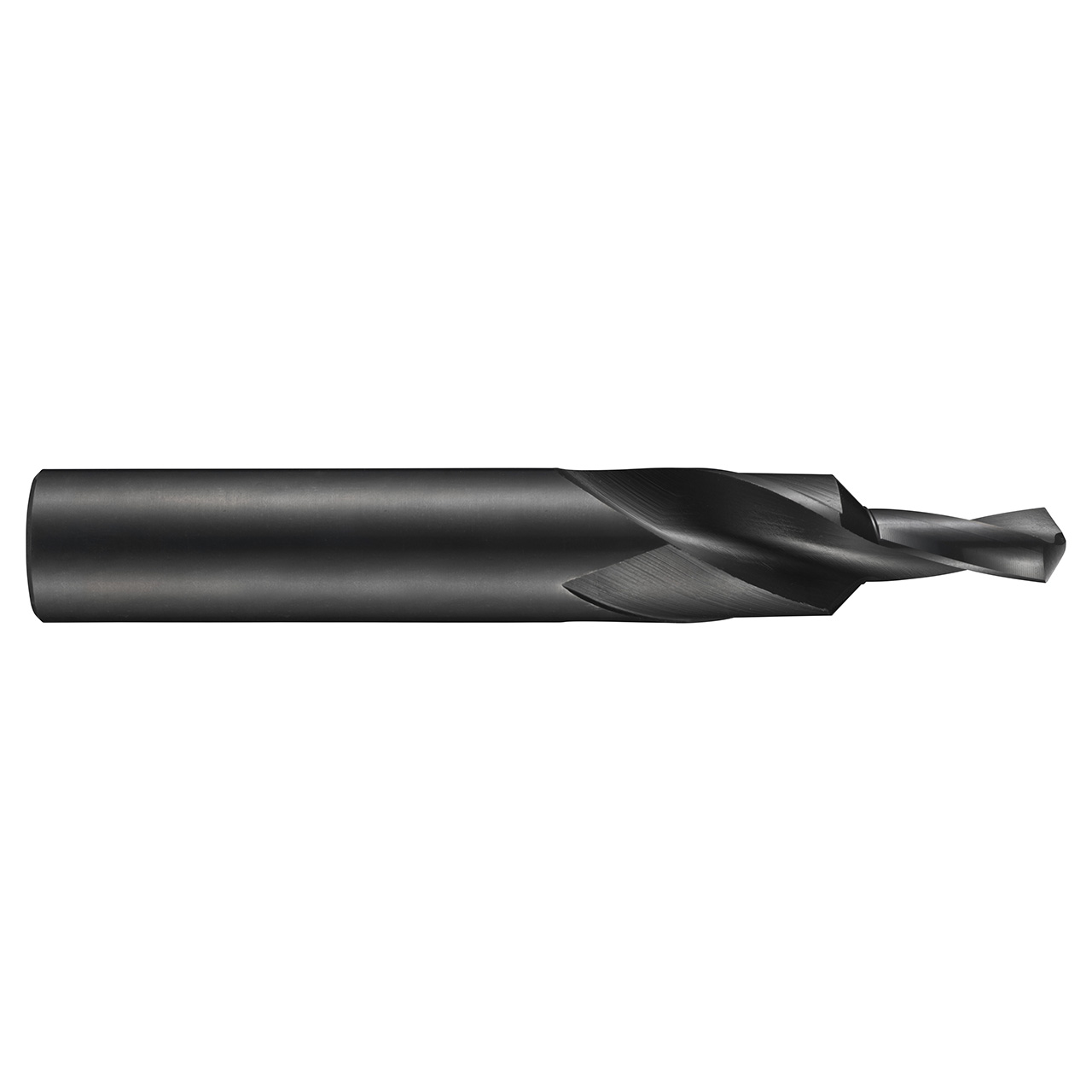

Step drill with 90 Degree included step angle, straight shank and a drilling-pilot diameter of 9.00mm with a length of 19.00mm, a large diameter of 17.20mm and an overall length of 123mm, according to Dormer standard to produce a medium fit through hole and conical seat for M8 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron.
Product Specifications
| EDP Number | 0213681 |
| Usable Length | 2.5 |
| Connection Diameter (Inch) | 0.6772" |
| Cutting Diameter (Inch) | 0.3543" |
| Overall Length (Inch) | 4.8425" |
| Thread Diameter (mm) | M8mm |
| Point Angle | 118 |
| Material Code | HSS |
| Drill Length | Short |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Surface Color | Black |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Shank Size (Inch):
43/64"
Shank Size (Decimal Inch):
0.6772"
Shank Size (mm):
17.2mm
Finish/Coating:
Steam Tempered
Material:
HSS
Overall Length (Inch):
4-27/32"
Overall Length (Decimal Inch):
4.8425"
Overall Length (mm):
123mm
