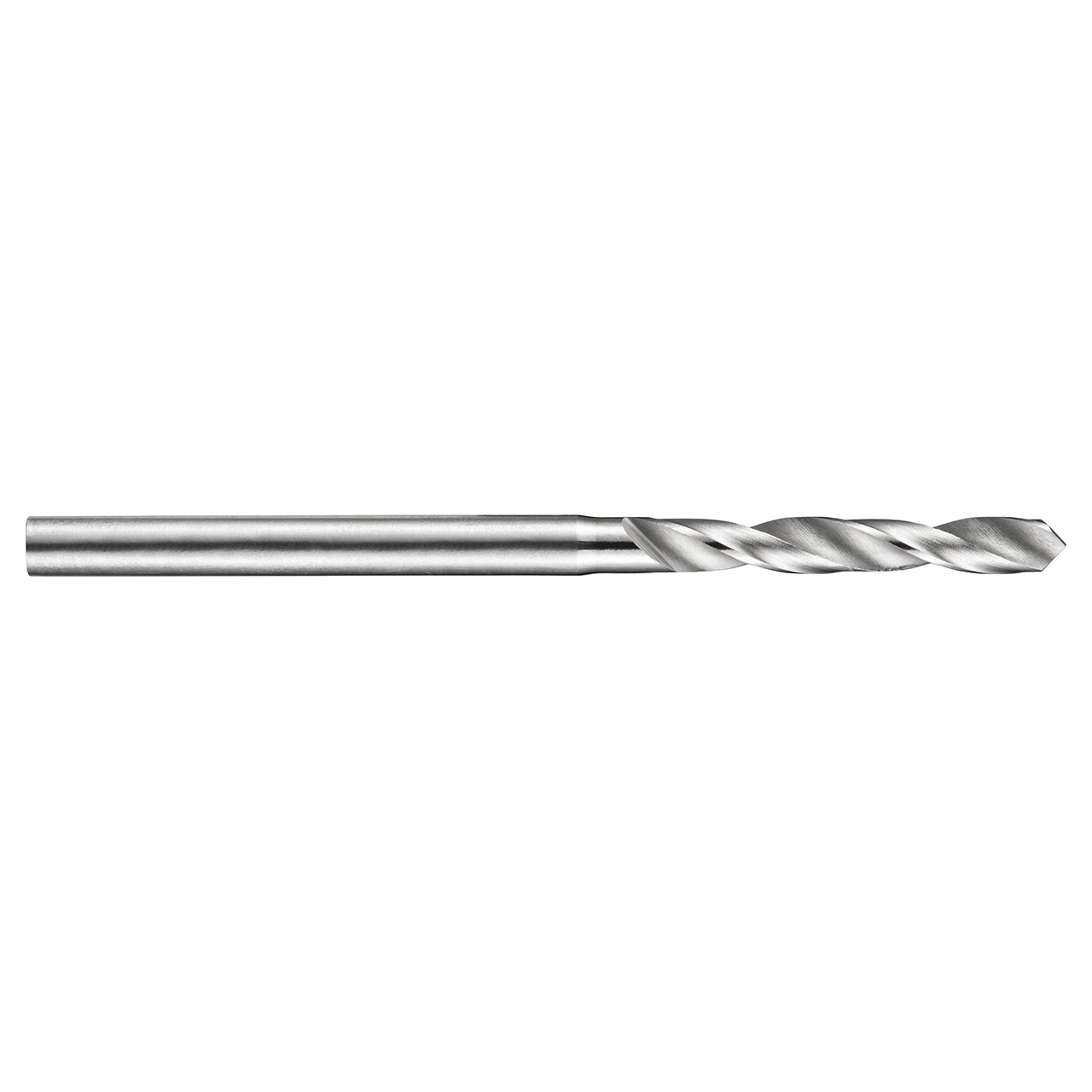

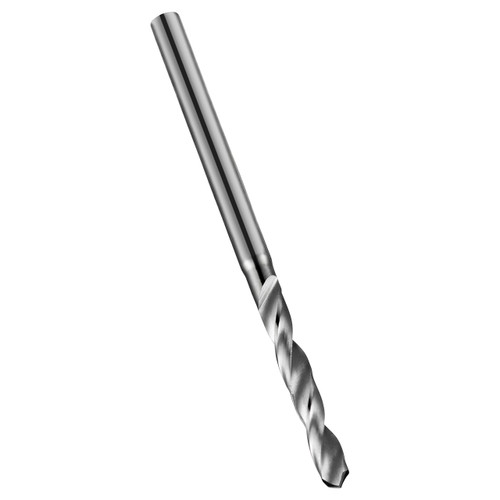

Dormer's A720 is a metric micro drill, supplied in very small diameters ranging from 0.15mm to 1.40mm. To make tool holding easier, all drills have either a 1.00mm or 1.50mm shank diameter. The drills all have a 118° 4-facet point which is a great aid to self-centering and reduces the amount of force needed to drill a hole. The drills have a bright finish to prevent workpiece material from sticking to the cutting edge and are made from High Speed cobalt so are also suitable for drilling abrasive materials.
| EDP Number | 0612163 |
| Usable Length | 2.5 |
| Connection Diameter (Inch) | 0.0591" |
| Cutting Diameter (Inch) | 0.0413" |
| Overall Length (Inch) | 0.9843" |
| Point Angle | 118 |
| Material Code | HSS-E |
| Drill Length | Short |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
