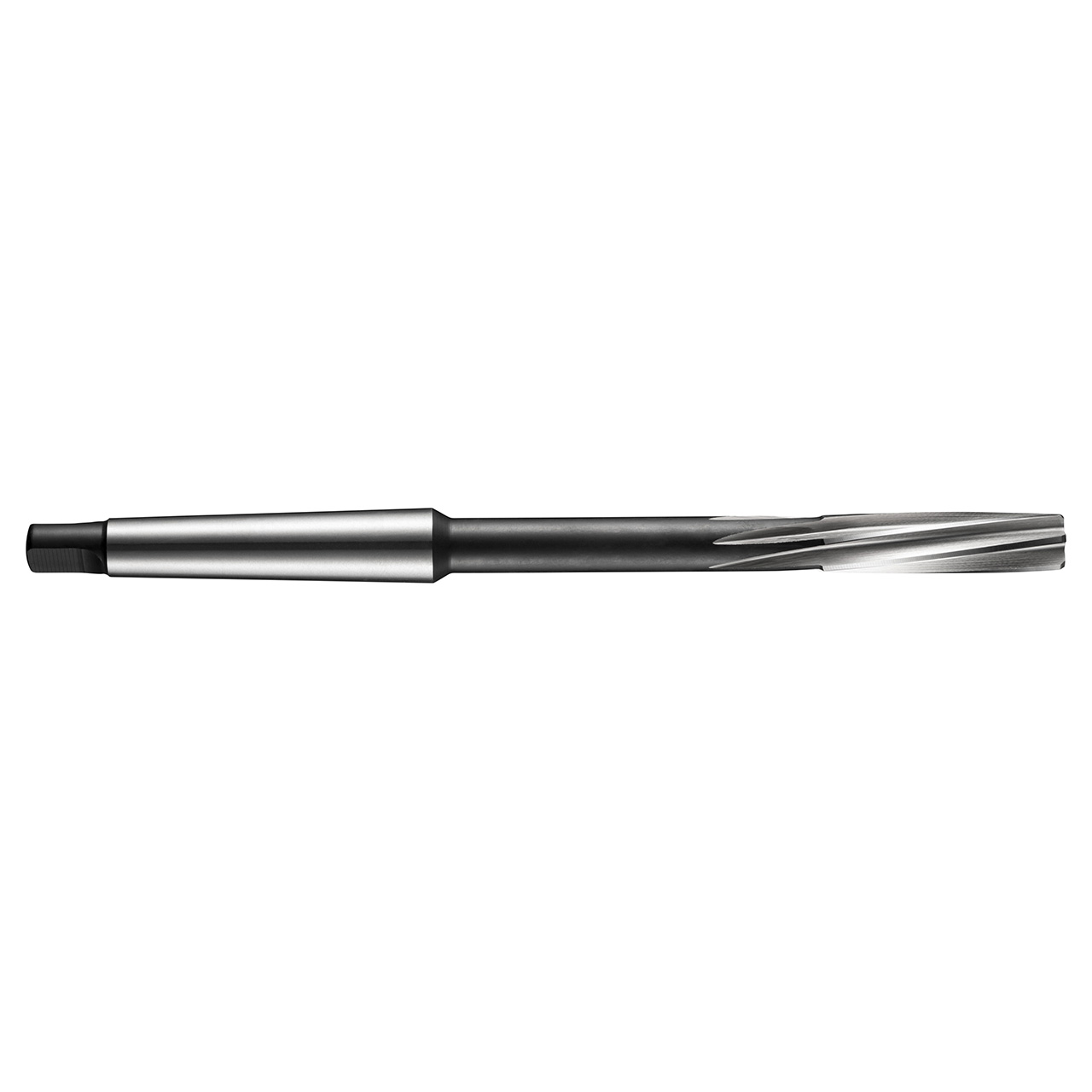

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 22.00mm with an overall length of 237mm, a flute length of 64mm and 157mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0049860 |
| Flute Count | 8 |
| Cutting Diameter (Inch) | 0.8661" |
| Body Length (mm) | 157mm |
| Overall Length (Inch) | 9.3307" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
55/64"
Reamer Diameter (Decimal Inch):
0.8661"
Reamer Diameter (mm):
22mm
Overall Length (Inch):
9-21/64"
Overall Length (Decimal Inch):
9.3307"
Overall Length (mm):
237mm
Flute Length (Inch):
2-33/64"
Flute Length (Decimal Inch):
2.5200"
Flute Length (mm):
64mm
Material:
HSS-E
Finish/Coating:
Bright
