Dormer B1707.05 | 0.2776" Diameter x 4.2913" OAL Bright Coated Chucking Reamer

$43.97
Brand:
Dormer
Reamer Diameter (Inch):
9/32"
Reamer Diameter (Decimal Inch):
0.2776"
Reamer Diameter (mm):
7.05mm
Overall Length (Inch):
4-19/64"
Overall Length (Decimal Inch):
4.2913"
Overall Length (mm):
109mm
Flute Length (Inch):
1-7/32"
Flute Length (Decimal Inch):
1.2200"
Flute Length (mm):
31mm
Material:
HSS-E
Finish/Coating:
Bright
SKU:
10114911
UPC:
7320760135839
Weight:
1.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

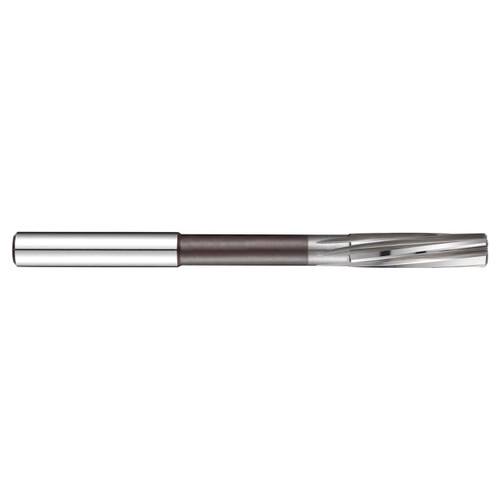

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 7.05mm with an overall length of 109mm, a flute length of 31mm and 69mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 7D8, 7E9 or 7F10, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.


Product Specifications
EDP Number0135839
Flute Count6
Connection Diameter (Inch)0.2795"
Cutting Diameter (Inch)0.2776"
Body Length (mm)69mm
Overall Length (Inch)4.2913"
Material CodeHSS-E
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
