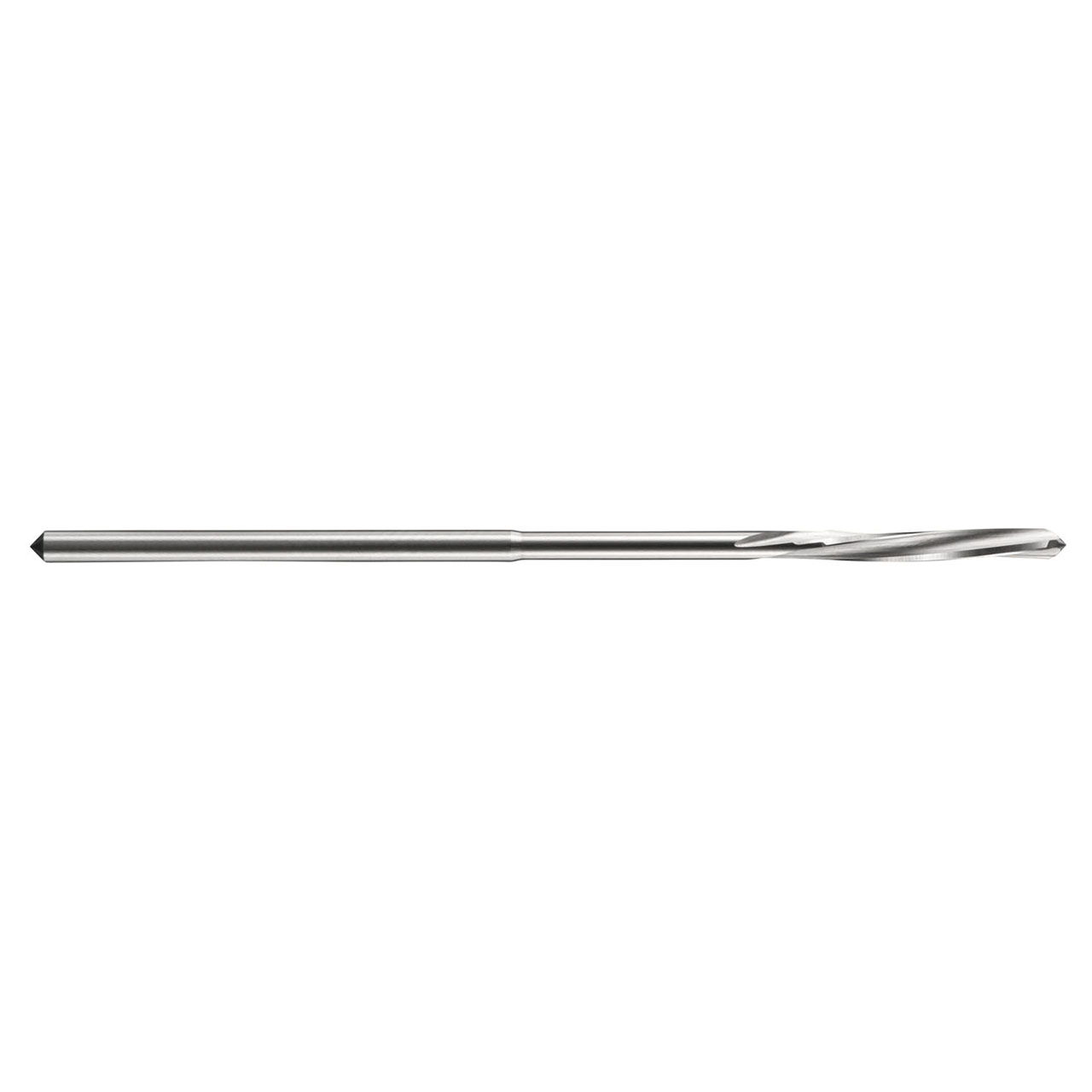

Dormer B4001.4 | 0.0551" Diameter x 1.5748" OAL Bright Coated Chucking Reamer

$70.11
Brand:
Dormer
Reamer Diameter (Inch):
1/16"
Reamer Diameter (Decimal Inch):
0.0551"
Reamer Diameter (mm):
1.4mm
Overall Length (Inch):
1-37/64"
Overall Length (Decimal Inch):
1.5748"
Overall Length (mm):
40mm
Flute Length (Inch):
5/16"
Flute Length (Decimal Inch):
0.3100"
Flute Length (mm):
8mm
Material:
HM
Finish/Coating:
Bright
SKU:
10114728
Weight:
0.14 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 1.40mm with an overall length of 40mm, a flute length of 8mm and 18mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.


Product Specifications
EDP Number0053003
Flute Count3
Connection Diameter (Inch)0.0591"
Cutting Diameter (Inch)0.0551"
Body Length (mm)18mm
Overall Length (Inch)1.5748"
Material CodeHM
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
