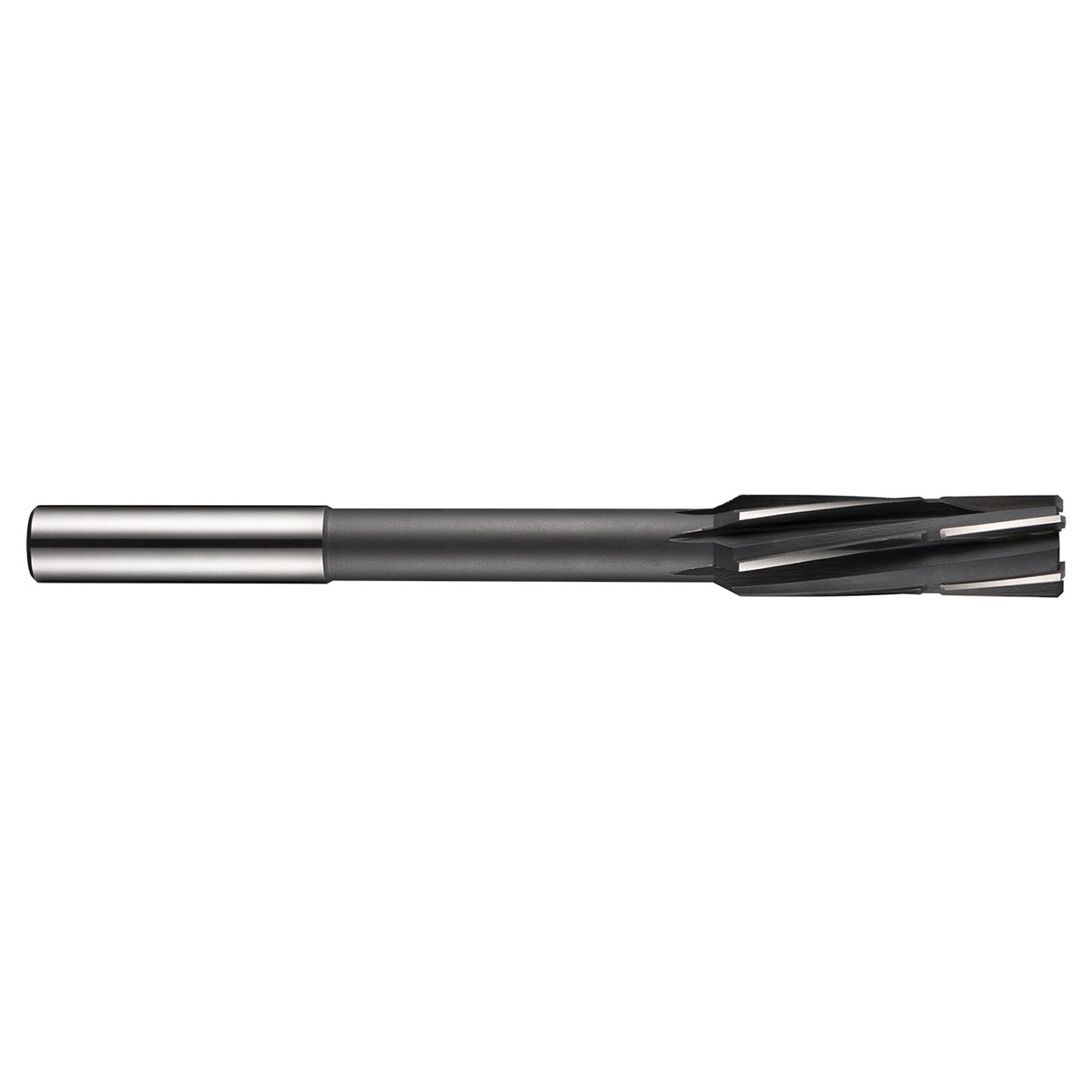

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 16.00mm with an overall length of 170mm, a flute length of 52mm and 125mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
| EDP Number | 0144305 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.4921" |
| Cutting Diameter (Inch) | 0.6299" |
| Body Length (mm) | 125mm |
| Overall Length (Inch) | 6.6929" |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
