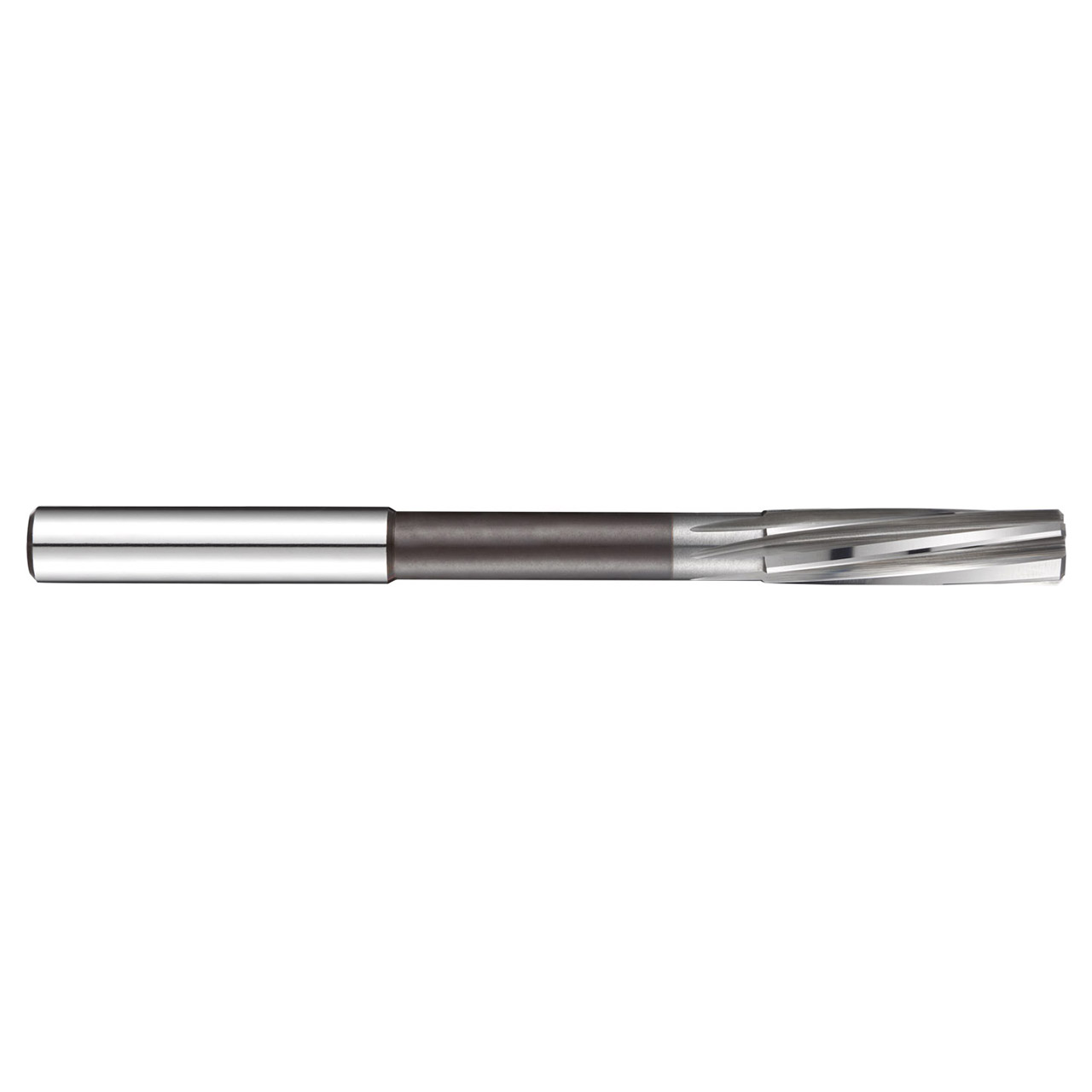

Dormer B4006.0 | 0.2362" Diameter x 3.6614" OAL Bright Coated Chucking Reamer

$117.42
Brand:
Dormer
Reamer Diameter (Inch):
15/64"
Reamer Diameter (Decimal Inch):
0.2362"
Reamer Diameter (mm):
6mm
Overall Length (Inch):
3-21/32"
Overall Length (Decimal Inch):
3.6614"
Overall Length (mm):
93mm
Flute Length (Inch):
1-1/32"
Flute Length (Decimal Inch):
1.0200"
Flute Length (mm):
26mm
Material:
HM
Finish/Coating:
Bright
SKU:
10114994
Weight:
1.25 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 6.00mm with an overall length of 93mm, a flute length of 26mm and 57mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.


Product Specifications
EDP Number0144220
Flute Count6
Connection Diameter (Inch)0.2205"
Cutting Diameter (Inch)0.2362"
Body Length (mm)57mm
Overall Length (Inch)3.6614"
Material CodeHM
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Dormer
Reamer Diameter (Inch):
15/64"
Reamer Diameter (Decimal Inch):
0.2362"
Reamer Diameter (mm):
6mm
Overall Length (Inch):
3-21/32"
Overall Length (Decimal Inch):
3.6614"
Overall Length (mm):
93mm
Flute Length (Inch):
1-1/32"
Flute Length (Decimal Inch):
1.0200"
Flute Length (mm):
26mm
Material:
HM
Finish/Coating:
Bright
