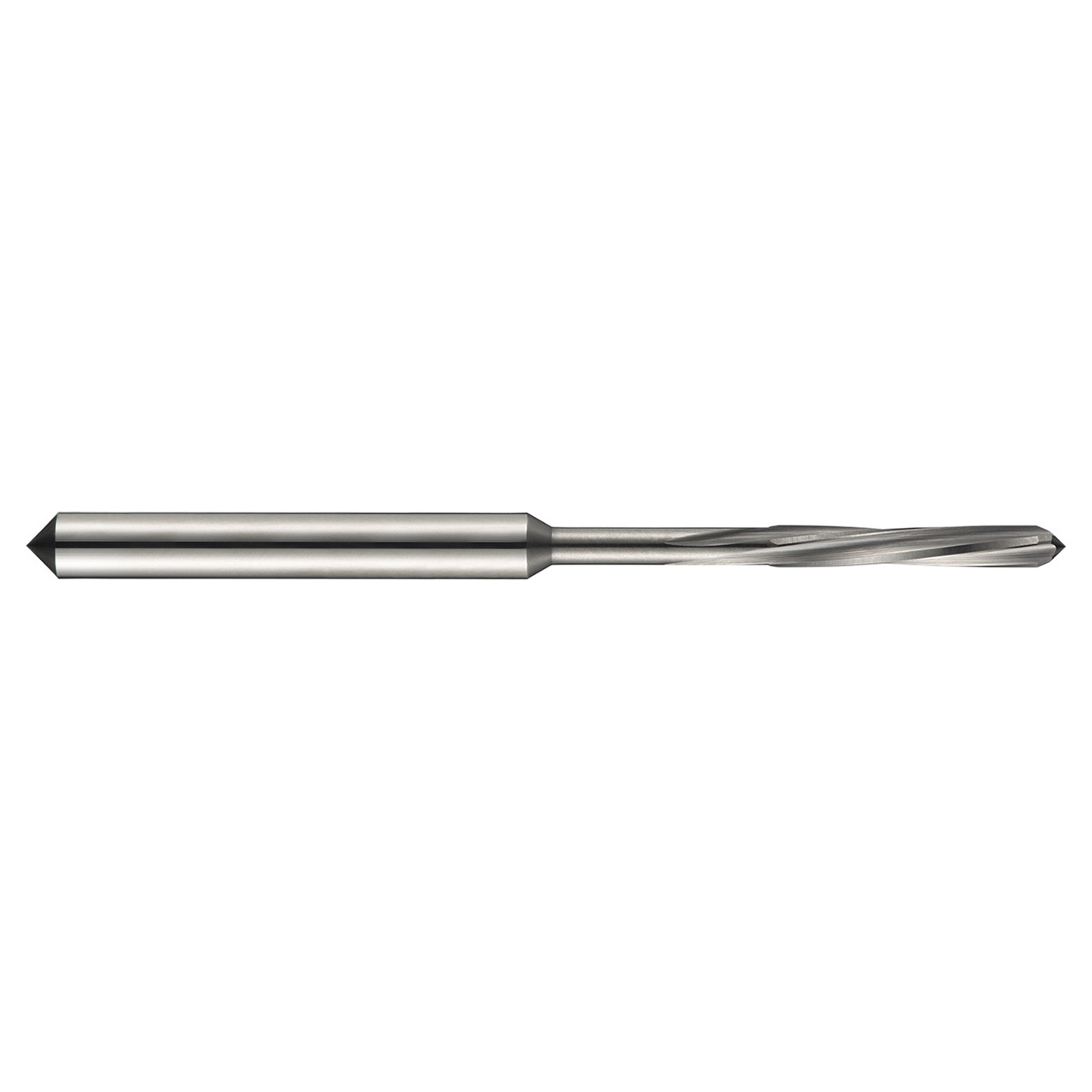

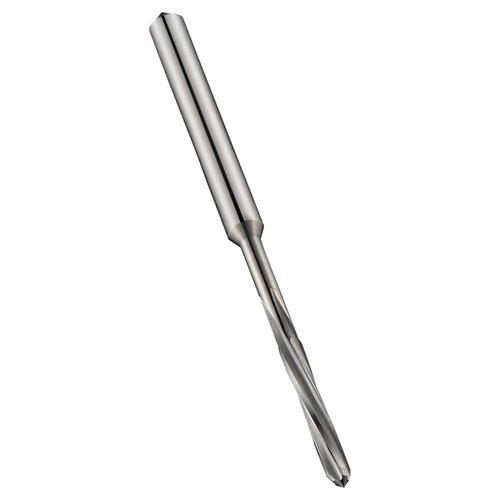

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 2.02mm with an overall length of 49mm, a flute length of 12mm and 21mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 2E8 or 2F9, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
| EDP Number | 0421871 |
| Flute Count | 4 |
| Connection Diameter (Inch) | 0.1181" |
| Cutting Diameter (Inch) | 0.0795" |
| Body Length (mm) | 28mm |
| Overall Length (Inch) | 1.9685" |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
