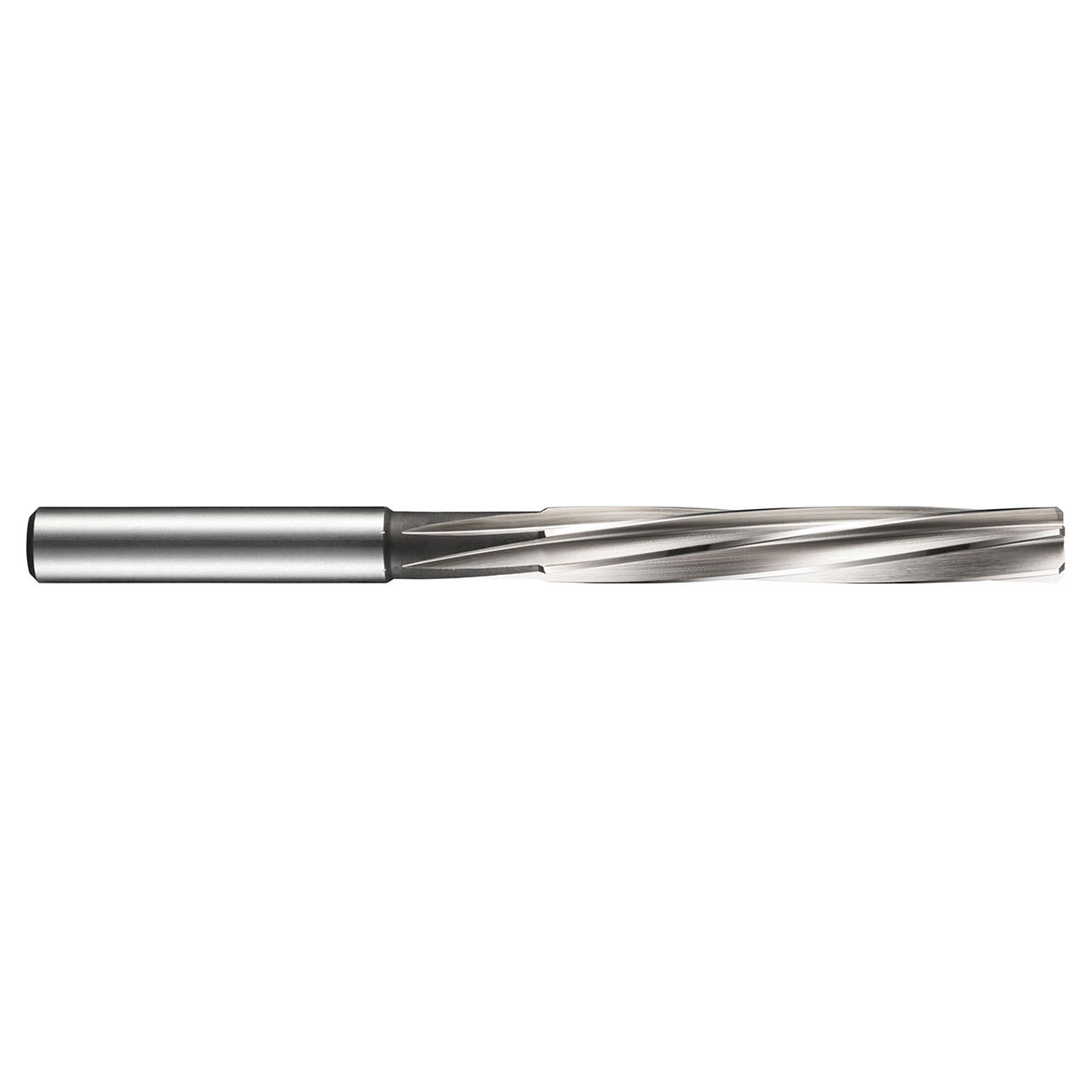

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 6.35mm (1/4") with an overall length of 100mm and a flute length of 50mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0181003 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.25" |
| Cutting Diameter (Inch) | 0.25" |
| Overall Length (Inch) | 3.937" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Surface Color | Bright & Blue |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
1/4"
Reamer Diameter (Decimal Inch):
0.2500"
Reamer Diameter (mm):
6.35mm
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
Flute Length (Inch):
1-31/32"
Flute Length (Decimal Inch):
1.9700"
Flute Length (mm):
50mm
Material:
HSS-E
Finish/Coating:
Bright/ST
