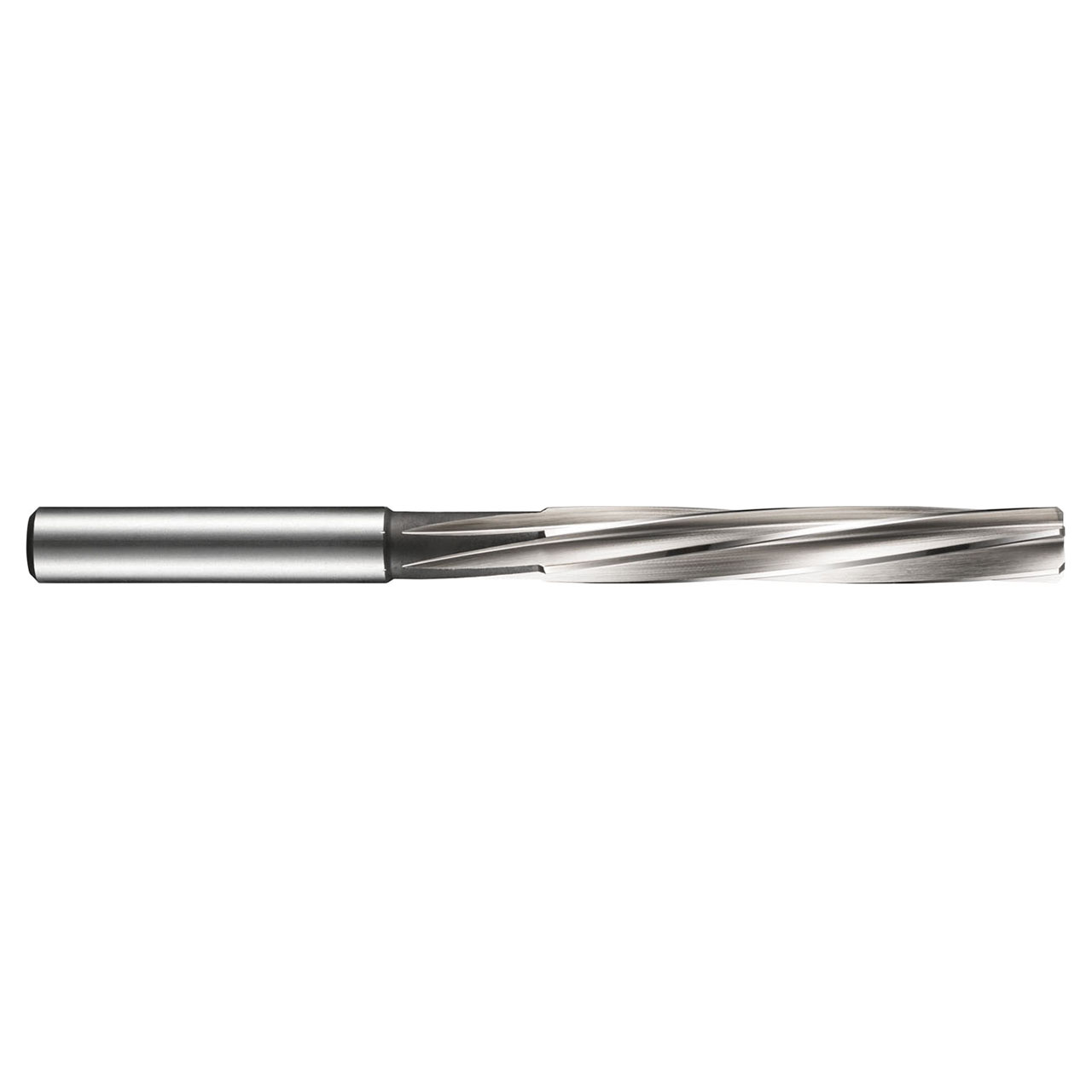

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 7.00mm with an overall length of 107mm and a flute length of 54mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0181010 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.2756" |
| Cutting Diameter (Inch) | 0.2756" |
| Overall Length (Inch) | 4.2126" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Surface Color | Bright & Blue |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
9/32"
Reamer Diameter (Decimal Inch):
0.2756"
Reamer Diameter (mm):
7mm
Overall Length (Inch):
4-7/32"
Overall Length (Decimal Inch):
4.2126"
Overall Length (mm):
107mm
Flute Length (Inch):
2-1/8"
Flute Length (Decimal Inch):
2.1300"
Flute Length (mm):
54mm
Material:
HSS-E
Finish/Coating:
Bright/ST
