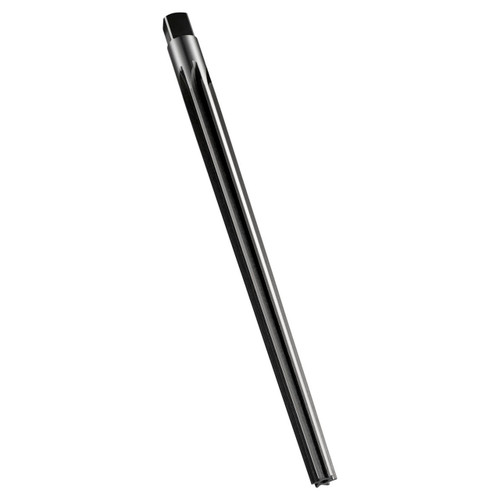

Taper pin hand reamer with straight flutes and a square drive, small end diameter 2.40mm with an overall length of 68mm, a flute length of 48mm and 3.36mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 2.50mm taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0182512 |
| Flute Count | 4 |
| Connection Diameter (Inch) | 0.1323" |
| Overall Length (Inch) | 2.6772" |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Surface Color | Bright & Blue |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Flute Length (Inch):
9-27/32"
Flute Length (Decimal Inch):
9.8400"
Flute Length (mm):
250mm
Overall Length (Inch):
12-13/64"
Overall Length (Decimal Inch):
12.2047"
Overall Length (mm):
310mm
Material:
HSS
Finish/Coating:
Bright
