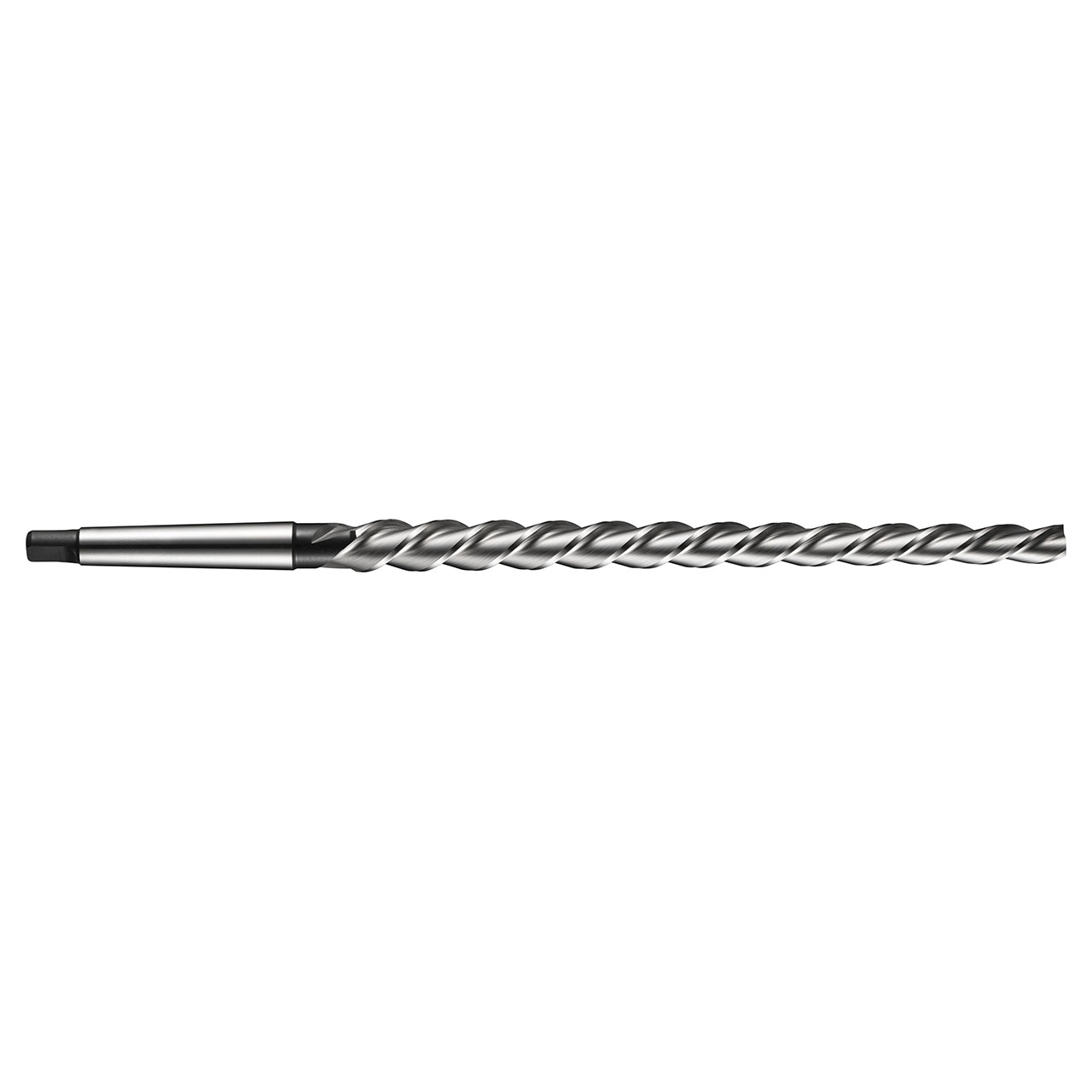

Taper pin machine reamer with left hand fast spiral flutes and a Morse taper shank, small end diameter 19.80mm with an overall length of 377mm, a flute length of 250mm and 24.80mm large end diameter, according to DIN 2180 standard for reaming pin holes with a 1:50 taper into which 20.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0054024 |
| Flute Count | 3 |
| Overall Length (Inch) | 14.8425" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Flute Length (Inch):
1-31/32"
Flute Length (Decimal Inch):
1.9700"
Flute Length (mm):
50mm
Overall Length (Inch):
2-51/64"
Overall Length (Decimal Inch):
2.7953"
Overall Length (mm):
71mm
Material:
HSS-E
Finish/Coating:
Bright/ST
interval quantity:
1
