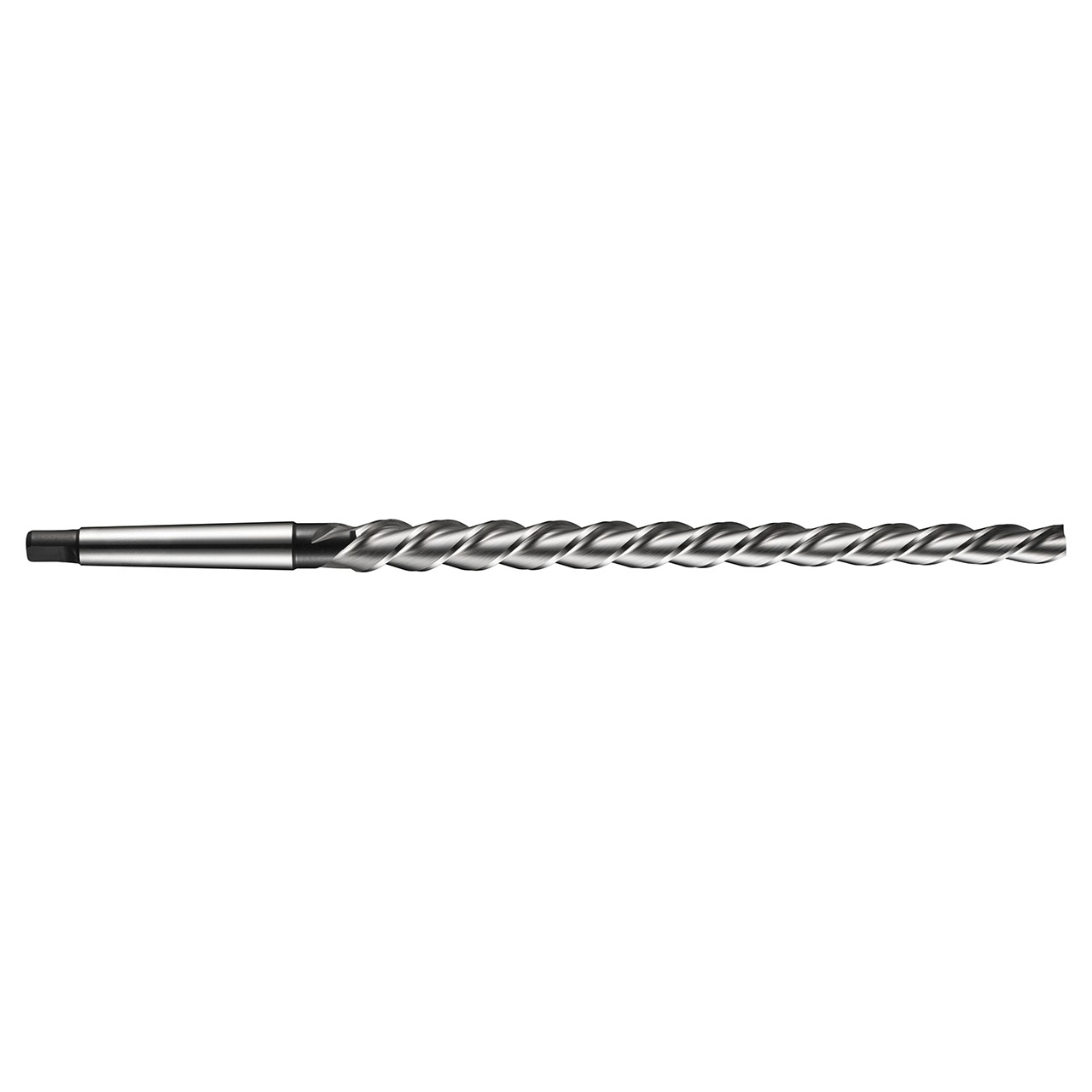

Taper pin machine reamer with left hand fast spiral flutes and a Morse taper shank, small end diameter 29.70mm with an overall length of 475mm, a flute length of 320mm and 36.10mm large end diameter, according to DIN 2180 standard for reaming pin holes with a 1:50 taper into which 30.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0054048 |
| Flute Count | 4 |
| Overall Length (Inch) | 18.7008" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Flute Length (Inch):
2-13/64"
Flute Length (Decimal Inch):
2.2000"
Flute Length (mm):
56mm
Overall Length (Inch):
3-5/32"
Overall Length (Decimal Inch):
3.1496"
Overall Length (mm):
80mm
Material:
HSS-E
Finish/Coating:
Bright/ST
