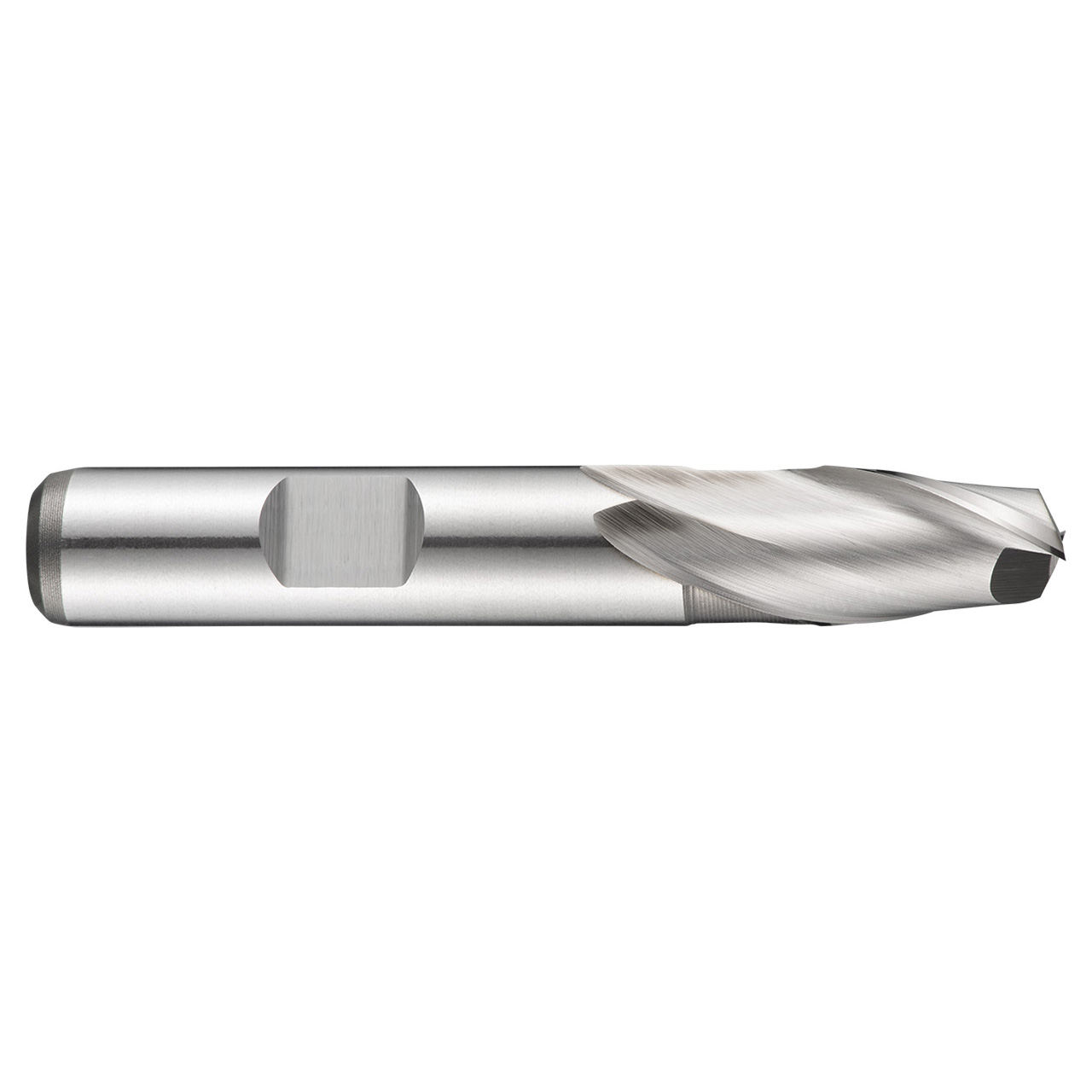

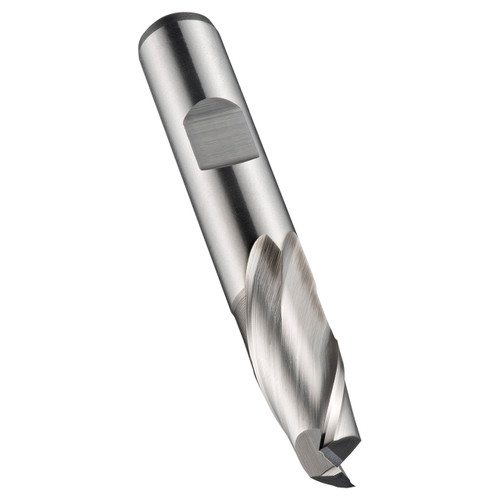

Dormer C1105.0 | 0.1969" Diameter x 2.0472" OAL 2 Flute Bright Coated Slot Drill

$18.98
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114140
UPC:
7320760353455
Weight:
0.42 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

C110 2 flute milling cutters from Dormer can be used as slot drills. They are manufactured from powder metal high speed cobalt which gives superior performance and extended tool life. The bright finish prevents workpiece material from building up on the cutting edges so you get a cleaner, more accurate finish, whilst the short length flute design makes the tool very rigid and suitable for milling shallow slots. The accurate diameter means the tools are designed for milling standard keyway slots to a P9 tolerance. C110 milling cutters are very versatile and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron.


Product Specifications
Max Depth of Cut (mm)8mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1969"
Overall Length (Inch)2.0472"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute2
Flute Helix Angle30
CoatingBright
Surface ColorBright Silver
