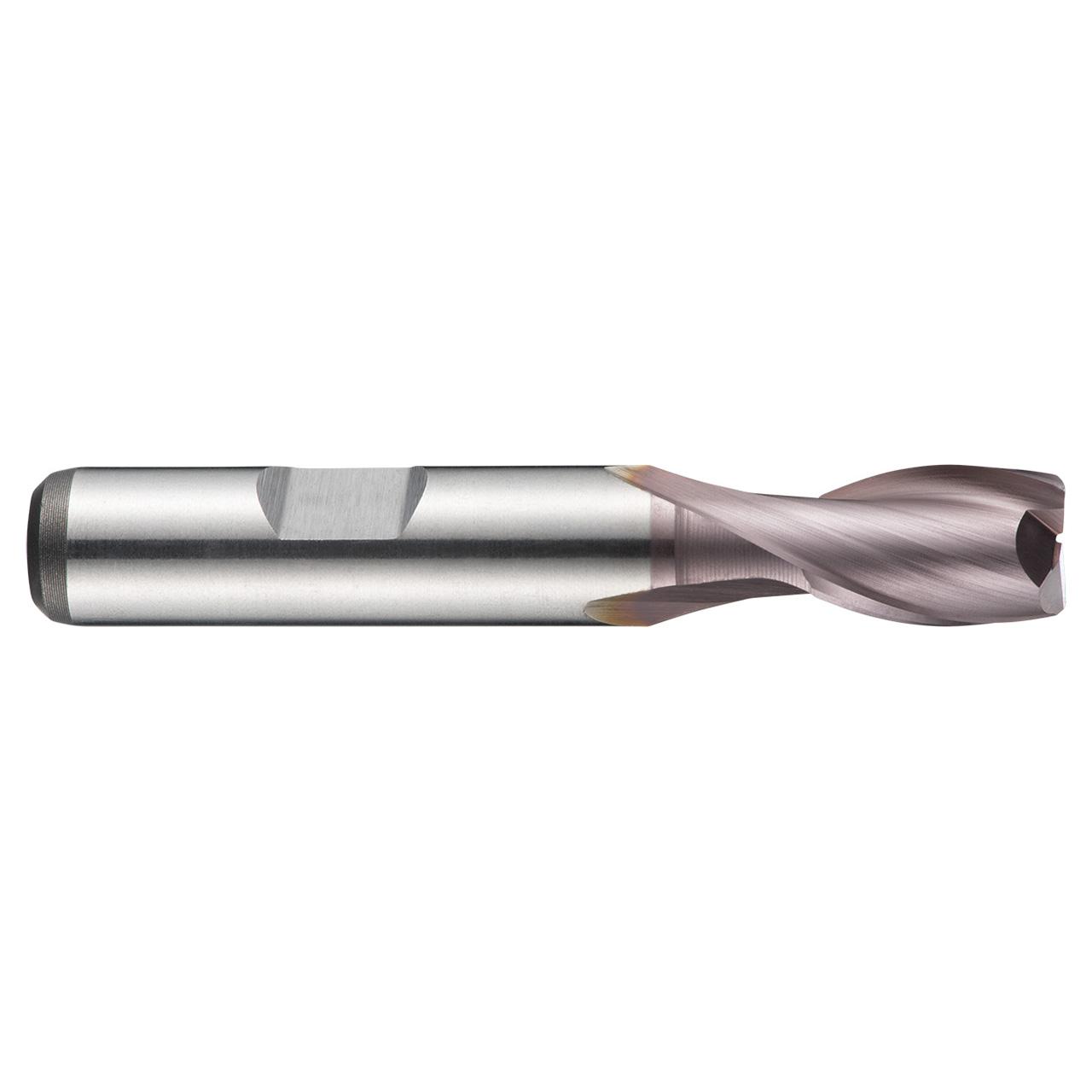

Dormer C1268.5 | 0.3346" Diameter x 2.4016" OAL 2 Flute TiCN Coated Slot Drill

$46.46
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114207
Weight:
1.29 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

C126 2 flute milling cutters will give you great performance coupled with a long tool life, being manufactured from powder metal high speed cobalt. They have a titanium carbo nitride coating which further increases the service life of the cutter and gives improved performance when machining hard and abrasive materials. The high rigidity achieved by the short length flute design makes C126 perfect for milling shallow slots, whilst the accurate diameter means they are also perfect for milling standard keyway slots to a P9 tolerance. For effective use in plunging, ramping and profile milling of steels, cast iron and stainless steels, there's no more versatile cutter than the C126.


Product Specifications
Max Depth of Cut (mm)11mm
Connection Diameter (Inch)0.3937"
Cutting Diameter (Inch)0.3346"
Overall Length (Inch)2.4016"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute2
Flute Helix Angle30
CoatingTiCN
Surface ColorPurple
