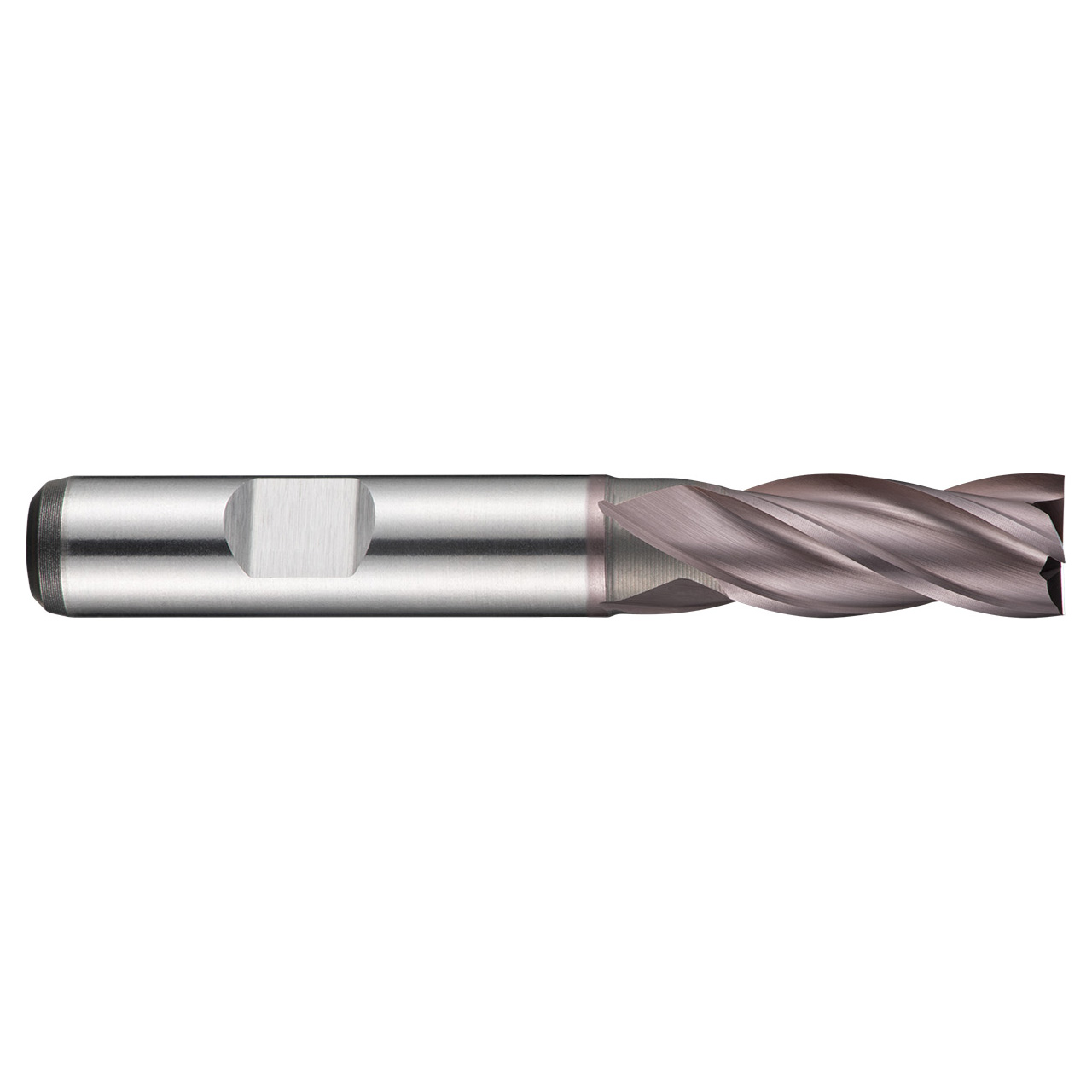

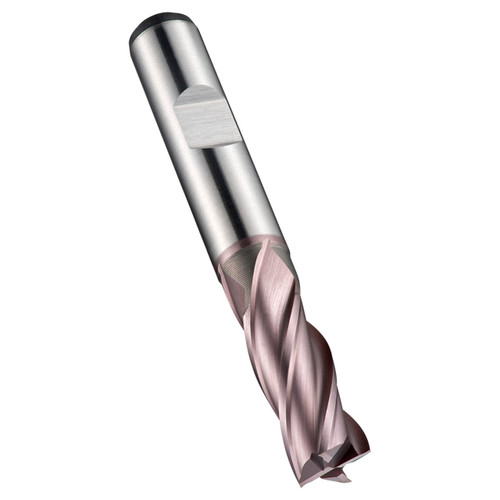

Dormer C2463.0 | 0.1181" Diameter x 2.0472" OAL 4 Flute TiCN Coated Square End Mill

$40.70
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140106
Weight:
0.44 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

C246 4-flute milling cutters from Dormer can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron. They are manufactured from powder metal high speed cobalt which means you will get great performance coupled with a longer tool life, and have a robust design which means they are equally suitable for both slotting and profile milling. The titanium carbo nitride coating further increases the life of the cutter and improves performance when milling hard and abrasive materials. The high rigidity as a result of the medium length flute design is ideal for general profile milling applications.


Product Specifications
Max Depth of Cut (mm)8mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1181"
Overall Length (Inch)2.0472"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute4
Flute Helix Angle30
CoatingTiCN
Surface ColorPurple
