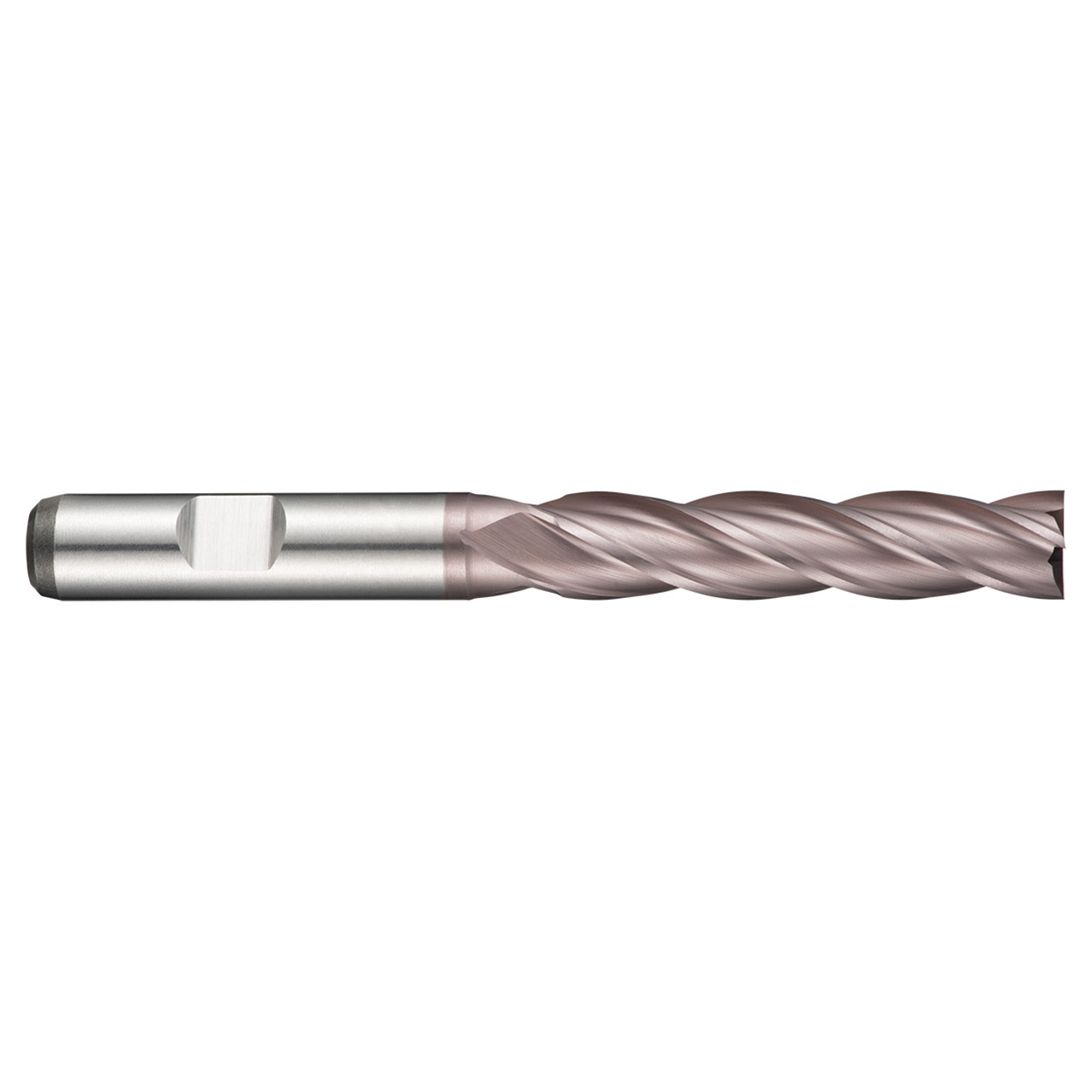

C295 4-flute milling cutters have a titanium carbo nitride coating which extends the service life of the tool and improved performance when milling hard and abrasive materials. The powder metal high speed cobalt used in manufacture provides superior performance and extended tool life.C295 milling cutters have a strong design so they can be used for profile milling on CNC machines and are very versatile, as they are suitable for plunging, ramping and profile milling in stainless steels, cast iron and steels, whilst the long series flute design provides high rigidity for finishing deep profiles.
Usable Length (mm) | 64.5mm |
Max Depth of Cut (mm) | 53mm |
Connection Diameter (Inch) | 0.4724" |
Cutting Diameter (Inch) | 0.5906" |
Overall Length (Inch) | 4.3307" |
Material Code | HSS-E-PM |
Radial Rake Angle | 12 |
No of Flute | 4 |
Flute Helix Angle | 30 |
Coating | TiCN |
Surface Color | Purple |
