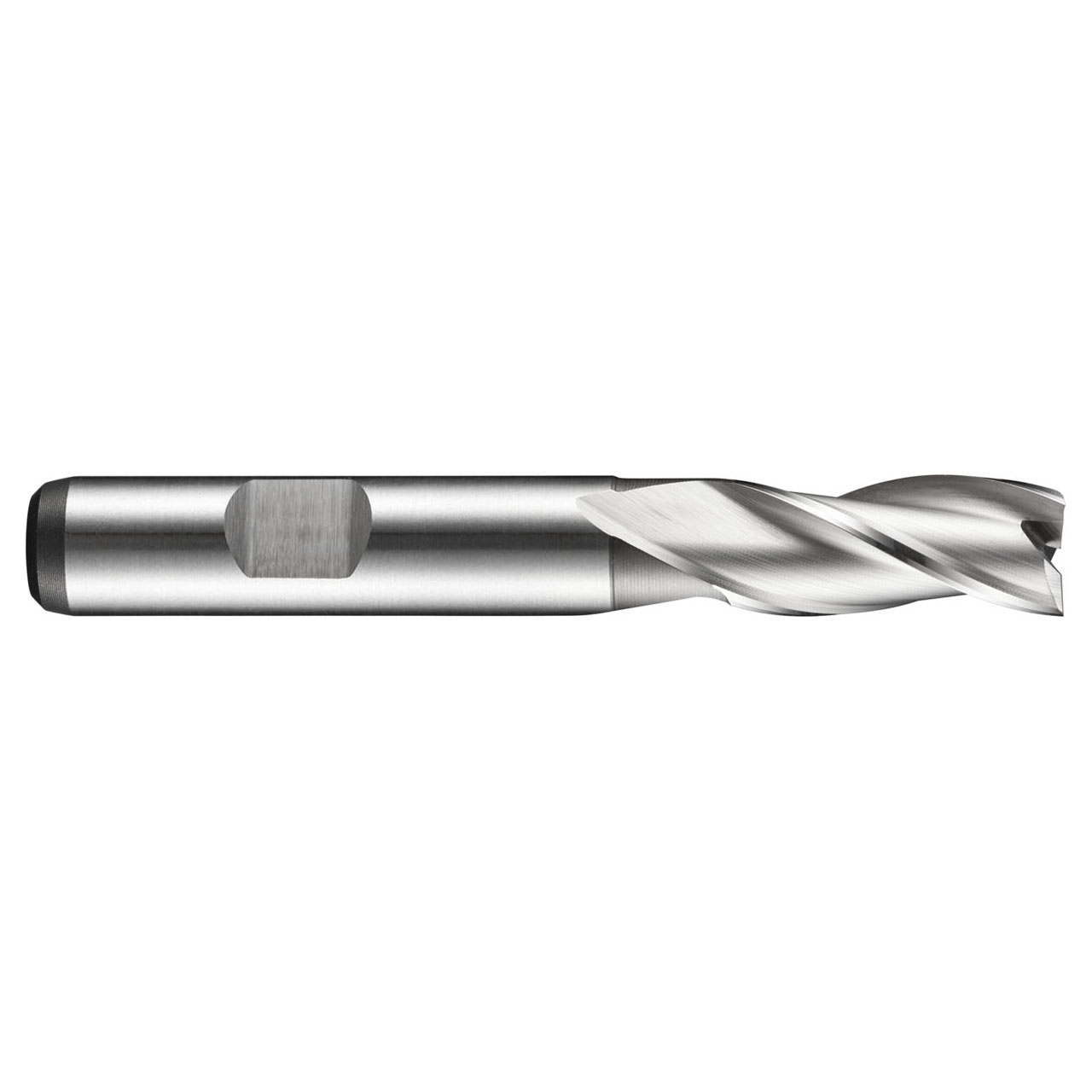

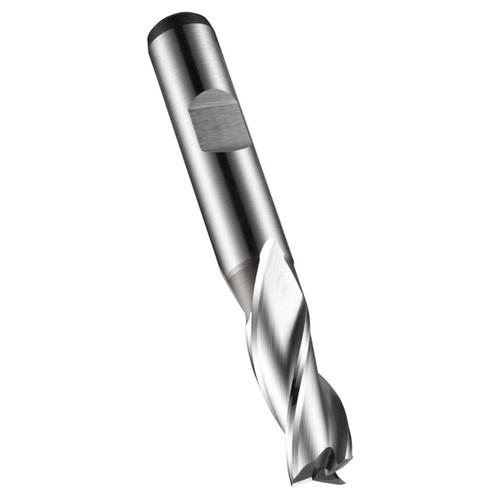

Dormer C3054.5 | 0.1772" Diameter x 2.1654" OAL 3 Flute Bright Coated Slot Drill

$31.07
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114265
UPC:
7320760572436
Weight:
0.35 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

The medium length flute design of C305 3-flute milling cutters provides high rigidity for milling standard slots whilst the accurate diameter means they are capable of milling standard keyway slots to a P9 tolerance. With a bright finish to prevent workpiece material from sticking to the cutting edges of the tool, C305 milling cutters will give you a clean, accurate finish and are very versatile products-suitable for plunging, ramping and profile milling of steels, stainless steels and cast iron. C305 milling cutters are manufactured from powder metal high speed cobalt for longer tool life and superior performance.


Product Specifications
Max Depth of Cut (mm)11mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1772"
Overall Length (Inch)2.1654"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute3
Flute Helix Angle30
CoatingBright
Surface ColorBright Silver
