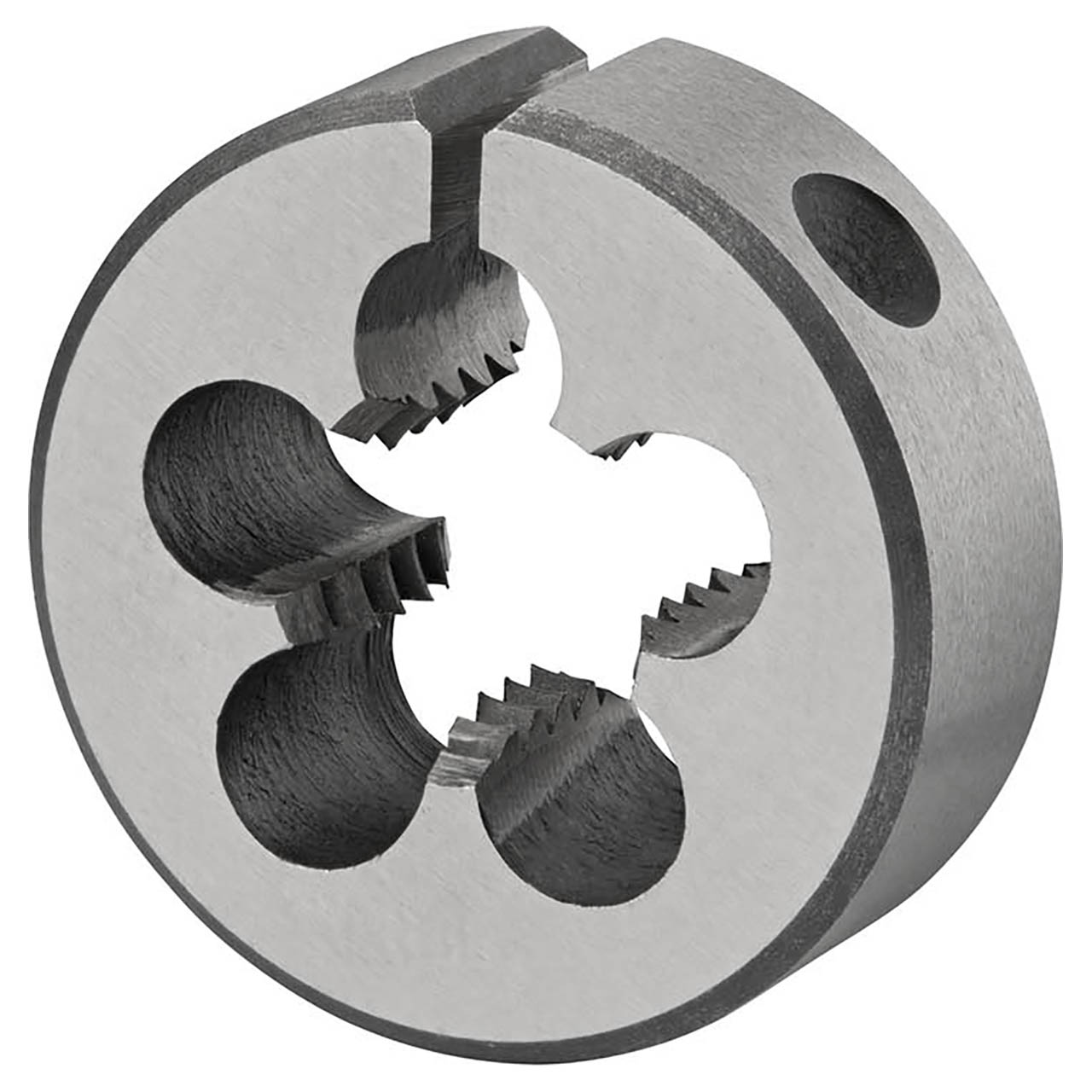

Adjustable circular split die, for Unified National Fine thread UNF 8 with 36 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 13/16" outside diameter and 1/4" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Specifications
| Body Diameter (Inch) | 0.8125" |
| Overall Length (Inch) | 0.25" |
| Thread Diameter (mm) | 4.17mm |
| Thread Diameter Size | 8 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | UNF-Unified Fine |
