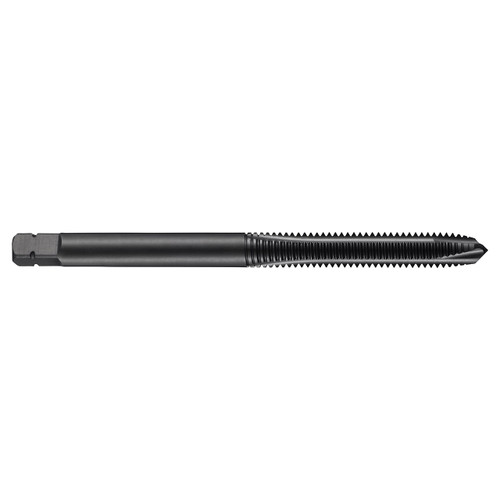

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Fine thread UNF 1/4" with 28 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.2550" shank and 0.1910" square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.255" |
| Overall Length (Inch) | 2.5" |
| No of Flutes | 3 |
| Usable Length (Inch) | 1.0073" |
| Thread Diameter Size | 1/4 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 3B |
| Threading Length (Inch) | 0.5075" |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | UNF-Unified Fine |
| Country of origin | Brazil |
