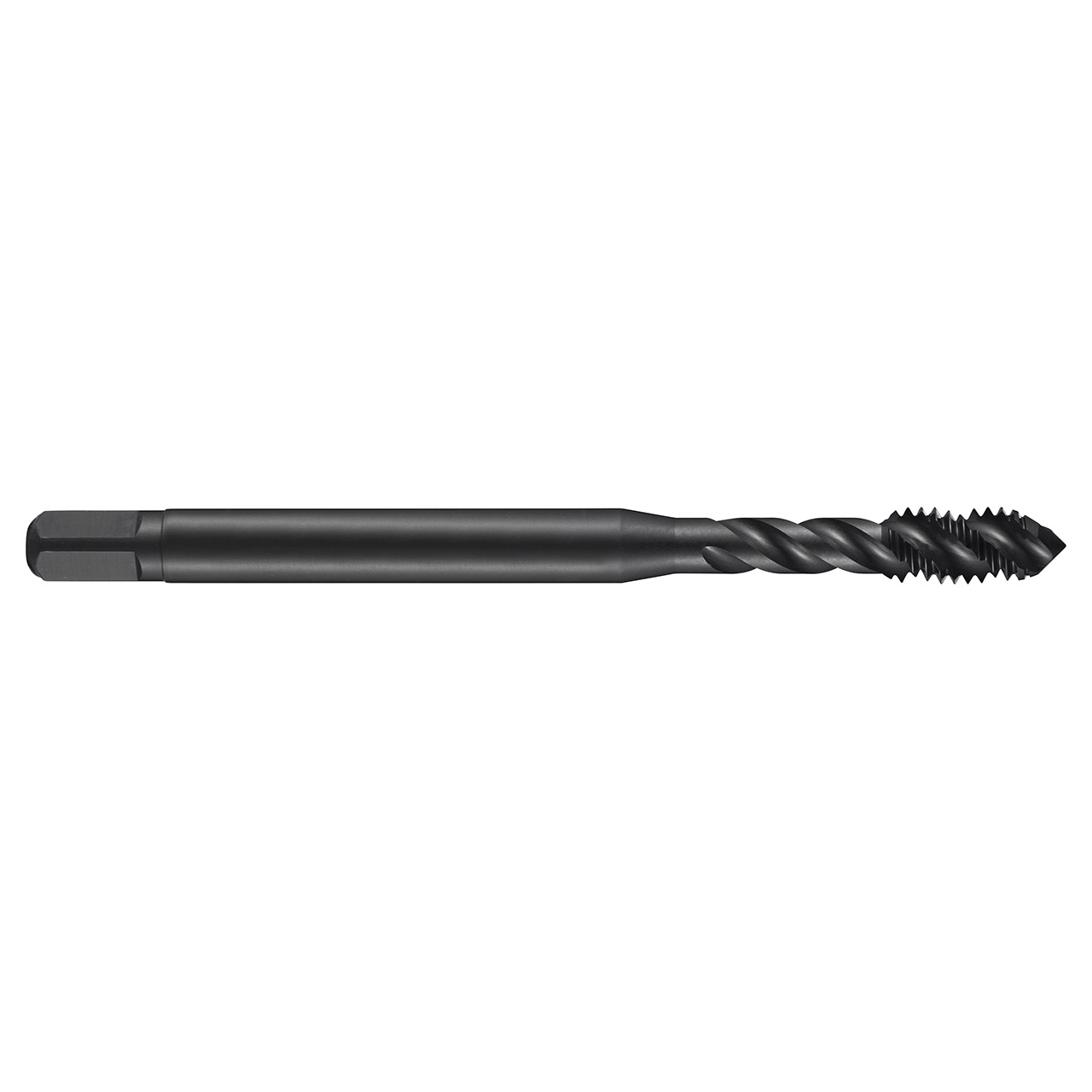

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 7/8" with 14 TPI and 3B class of fit with H4 pitch diameter limits, dimensions according to ANSI standard with 0.6970" shank and 0.5230" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45 Degree helix angle for 2.5xD blind hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.697" |
| Overall Length (Inch) | 4.6875" |
| No of Flutes | 3 |
| Flute Helix Angle | 45 |
| Thread Diameter Size | 7/8 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 3B |
| Threading Length (Inch) | 0.9843" |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | UNF-Unified Fine |
| Country of origin | Brazil |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
interval quantity:
1
