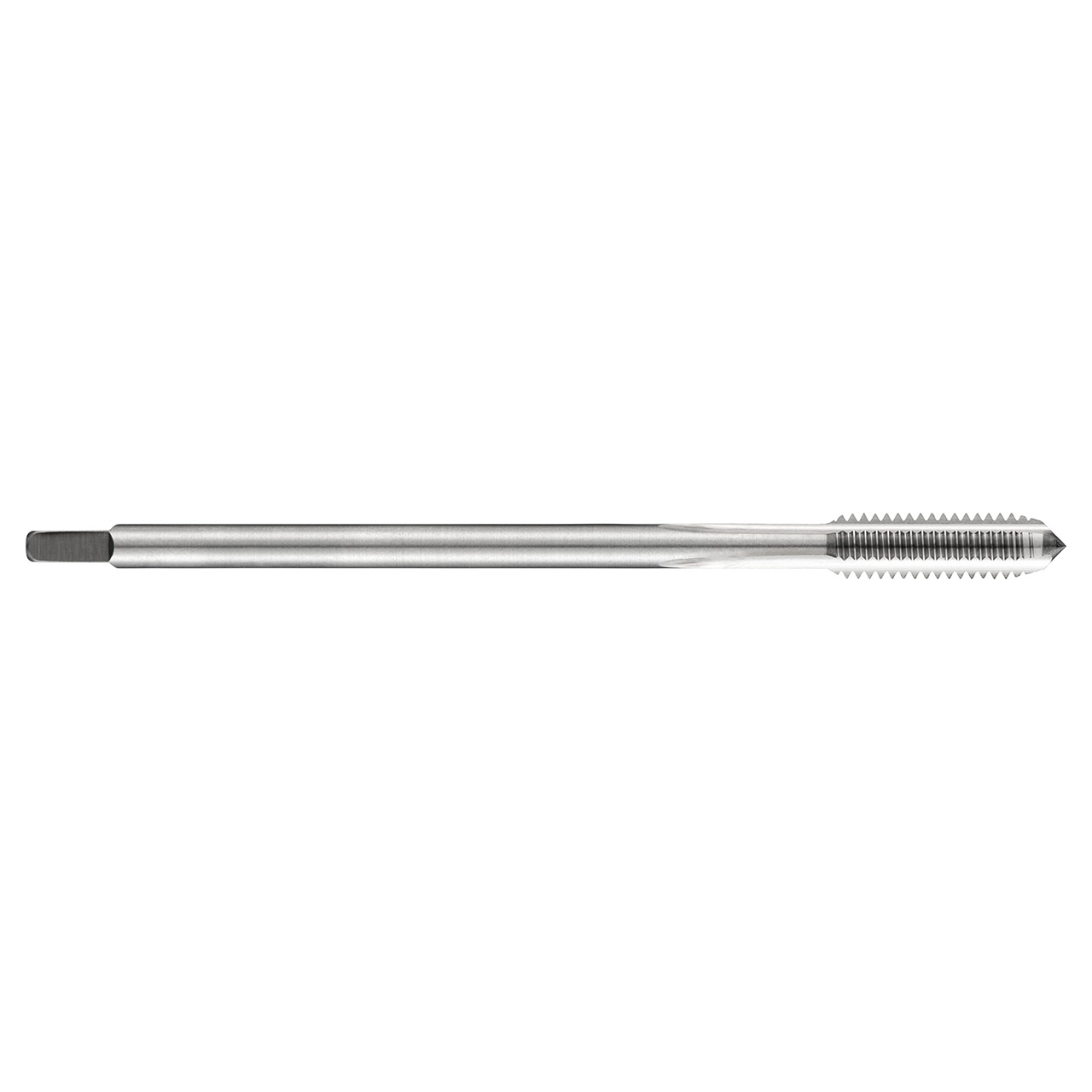

Straight flute tap with chamfer form A with a 6-8xP taper lead, for ISO-Metric thread M22 with 2.50mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.7087" |
| Overall Length (Inch) | 5.5118" |
| Clamping Width (mm) | 14.5mm |
| No of Flutes | 4 |
| Thread Pitch (mm) | 2.5mm |
| Clamping Length | 17 |
| Thread Diameter Size | 22 |
| Threading Length (mm) | 34mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | A 6-8 / C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
| Country of origin | India |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
