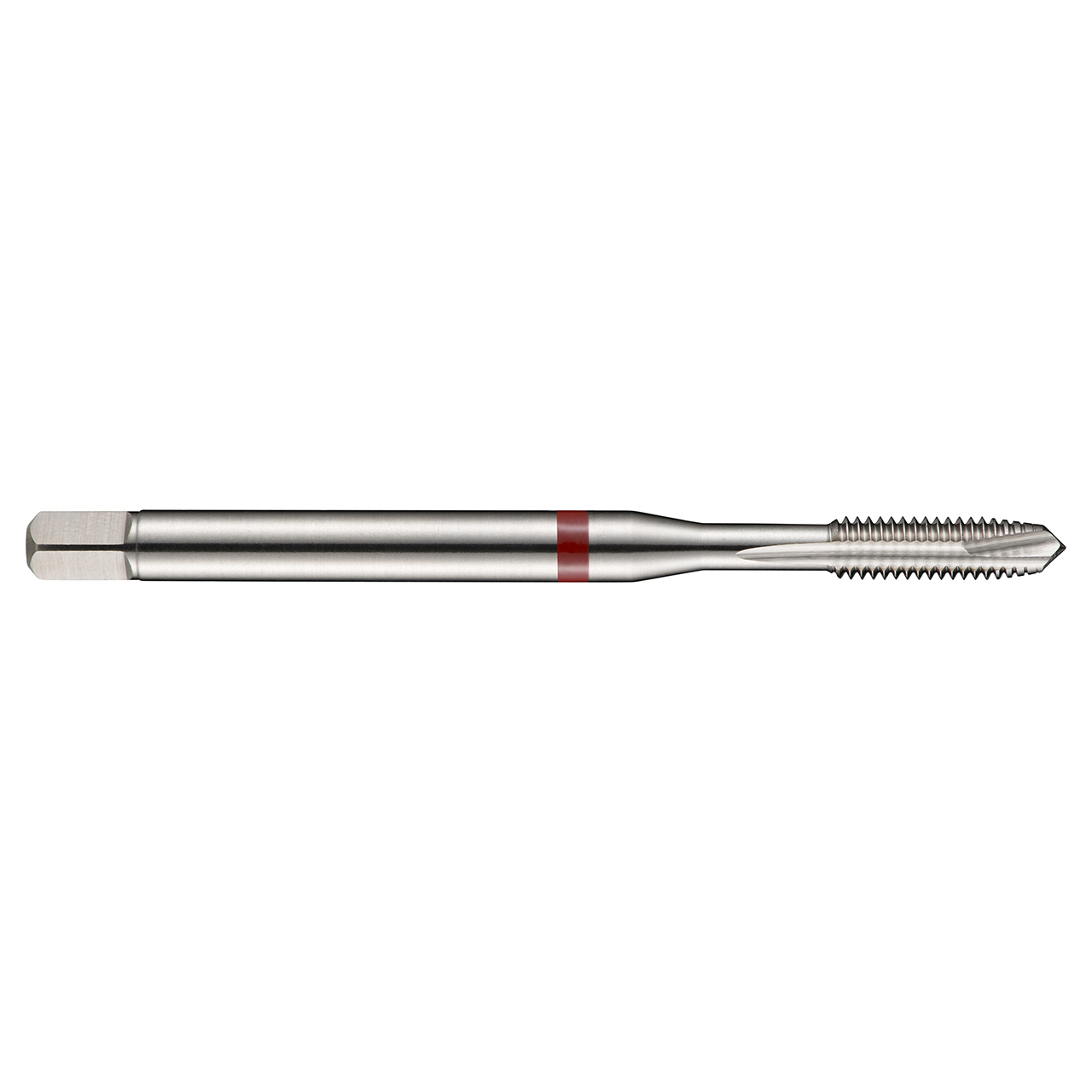

Dormer E255M5 | 0.2362" Diameter x 2.7559" OAL 3 Flute Bright Coated Spiral Point Tap

$26.87
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026707
UPC:
7320760674260
Weight:
0.49 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M5 with 0.80mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.2362"
Overall Length (Inch)2.7559"
Clamping Width (mm)4.9mm
No of Flutes3
Usable Length (mm)25mm
Thread Pitch (mm)0.8mm
Clamping Length8
Thread Diameter Size5
Threading Length (mm)13mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleB 3.5-5
Surface ColorBright Silver
Thread FormM-Metric coarse
