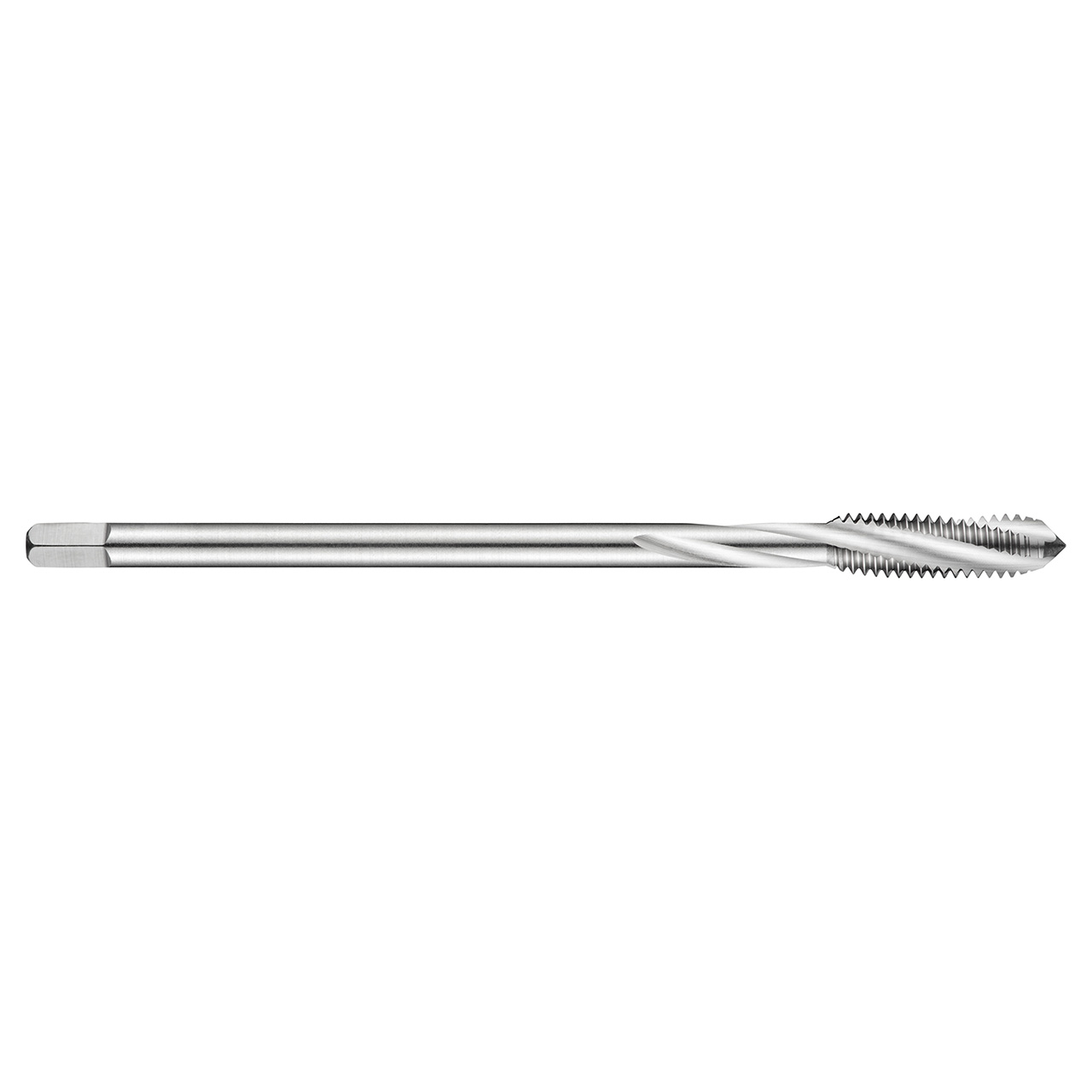

Dormer E258M24 | 0.7087" Diameter x 6.2992" OAL 4 Flute Bright Coated Spiral Flute Tap

$115.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022459
Weight:
11.15 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M24 with 3.00mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with bright finish and 15° helix angle for 1.5xD blind hole threading in alloy steel.


Product Specifications
Connection Diameter (Inch)0.7087"
Overall Length (Inch)6.2992"
Clamping Width (mm)14.5mm
No of Flutes4
Flute Helix Angle15
Thread Pitch (mm)3mm
Clamping Length17
Thread Diameter Size24
Threading Length (mm)38mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormM-Metric coarse
