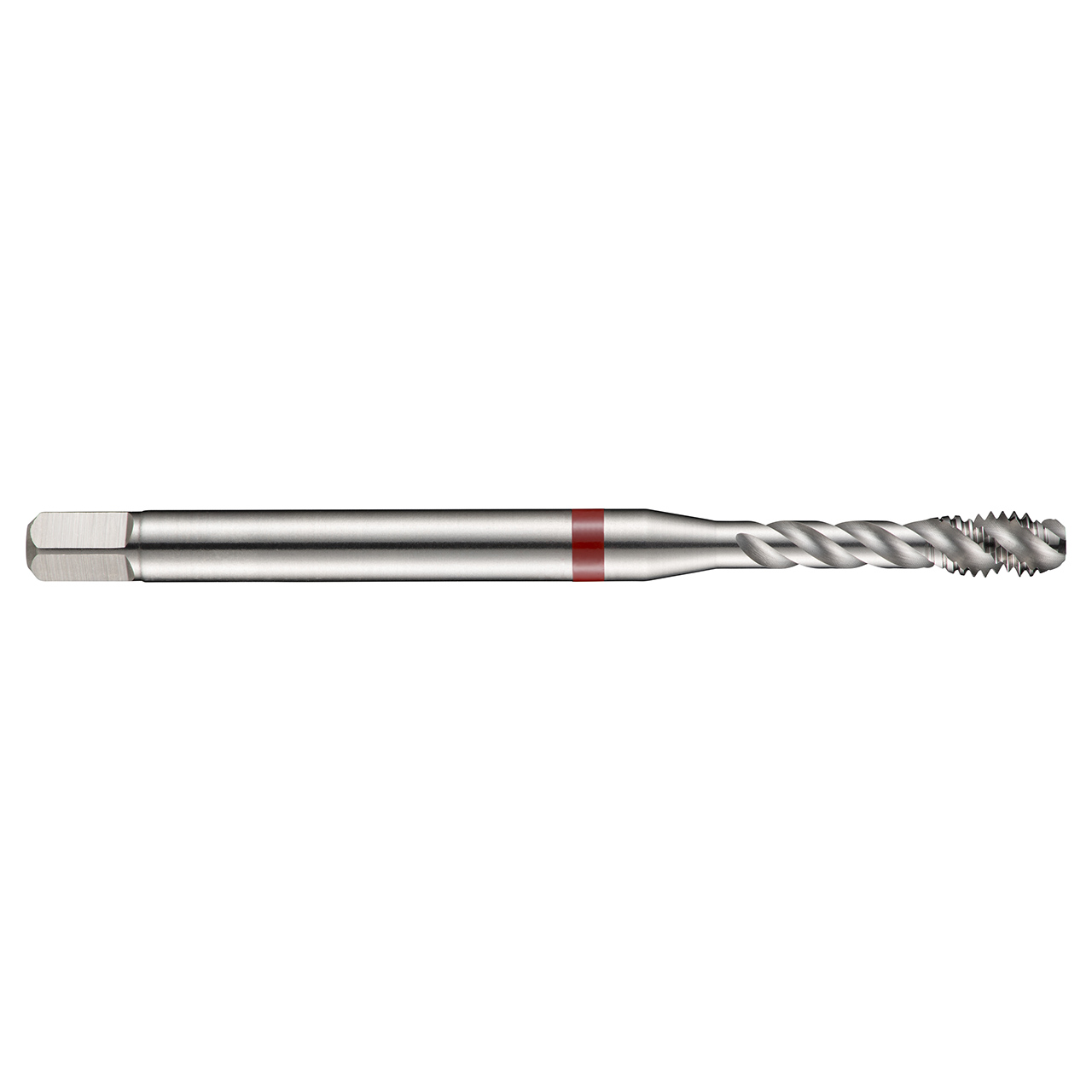

Dormer E260M16 | 0.4724" Diameter x 4.3307" OAL 4 Flute Bright Coated Spiral Flute Tap

$83.70
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026732
Weight:
3.17 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

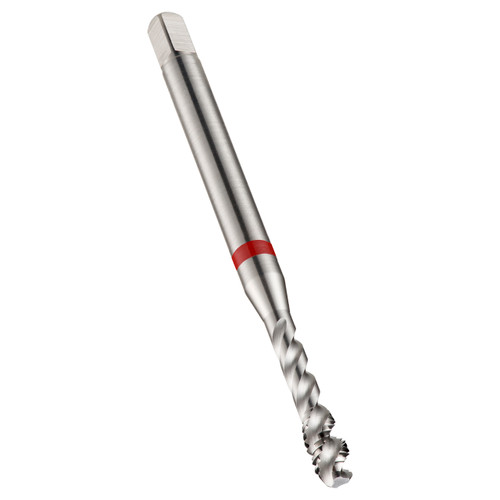

Spiral flute tap Red Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M16 with 2.00mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.4724"
Overall Length (Inch)4.3307"
Clamping Width (mm)9mm
No of Flutes4
Flute Helix Angle45
Thread Pitch (mm)2mm
Clamping Length12
Thread Diameter Size16
Threading Length (mm)20mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormM-Metric coarse
