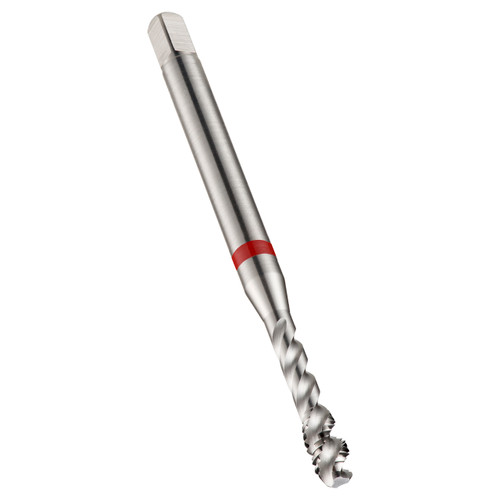

Dormer E260M3 | 0.1378" Diameter x 2.2047" OAL 3 Flute Bright Coated Spiral Flute Tap

$30.29
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026724
Weight:
0.21 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Red Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M3 with 0.50mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5mm shank and 2.7mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.1378"
Overall Length (Inch)2.2047"
Clamping Width (mm)2.7mm
No of Flutes3
Flute Helix Angle45
Usable Length (mm)18mm
Thread Pitch (mm)0.5mm
Clamping Length6
Thread Diameter Size3
Threading Length (mm)6mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormM-Metric coarse
