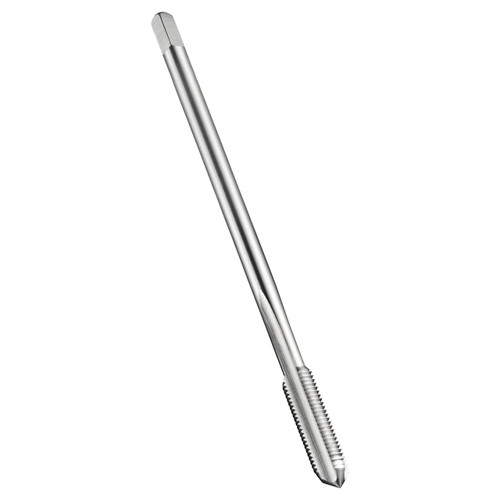

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M32 with 2.00mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.8661" |
| Overall Length (Inch) | 5.9055" |
| Clamping Width (mm) | 18mm |
| No of Flutes | 4 |
| Thread Pitch (mm) | 2mm |
| Clamping Length | 21 |
| Thread Diameter Size | 32 |
| Threading Length (mm) | 28mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | MF-Metric fine |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
