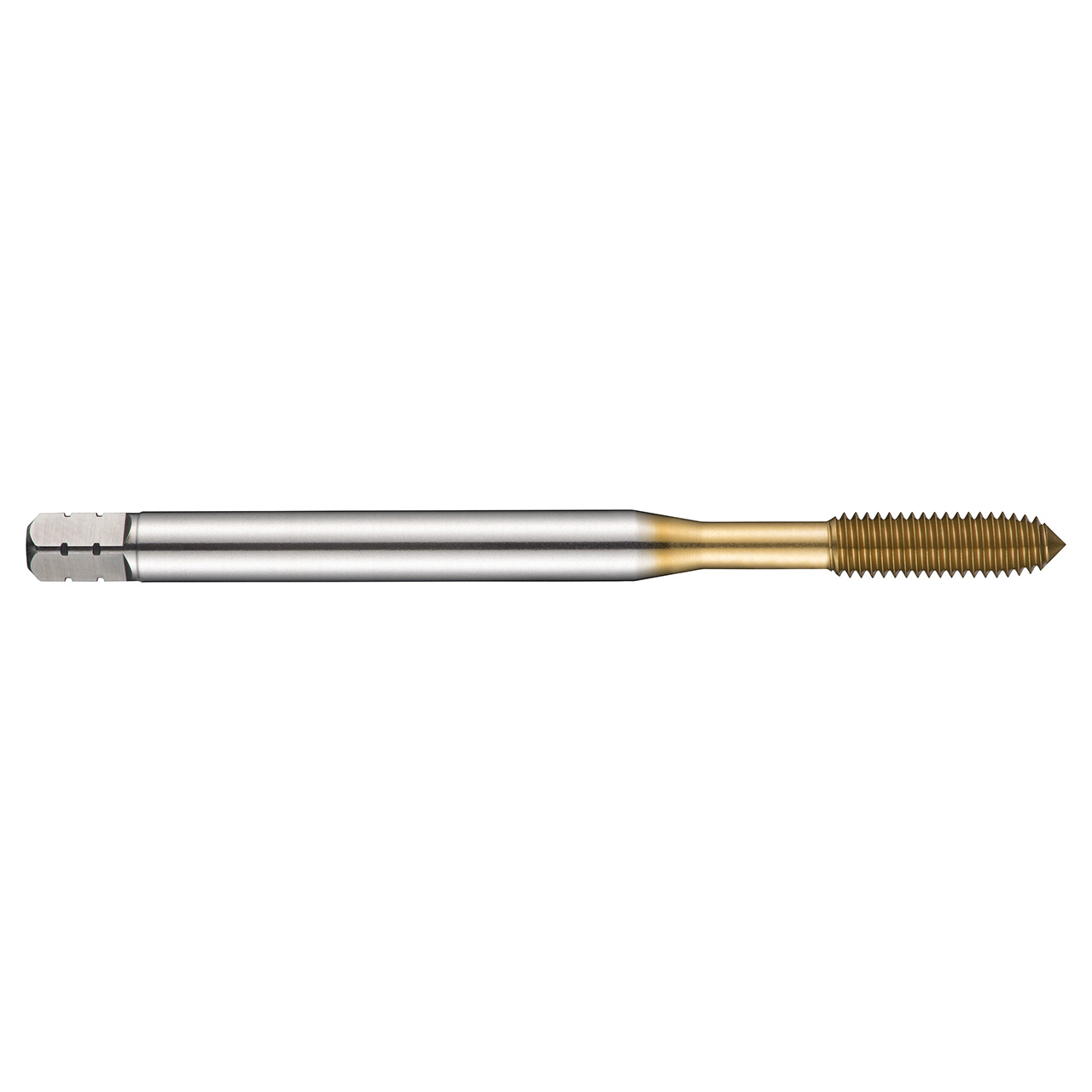

Thread forming tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M6 with 1.00mm pitch and 6GX class of fit, dimensions according to DIN 2174 standard with 6.0mm shank and 4.9mm square drive, cobalt based HSS-E with TiN coating for 3xD through or blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium.
Product Specifications
| Connection Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 3.1496" |
| Clamping Width (mm) | 4.9mm |
| No of Flutes | 5 |
| Usable Length (mm) | 30mm |
| Thread Pitch (mm) | 1mm |
| Clamping Length | 8 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 15mm |
| Material Code | HSS-E |
| Thread Tolerance Class | 6GX |
| Cutting Direction | Right Hand |
| Coating | TiN |
| Tap Chamfer Style | C 2-3.5 |
| Surface Color | Gold |
| Thread Form | M-Metric coarse |
