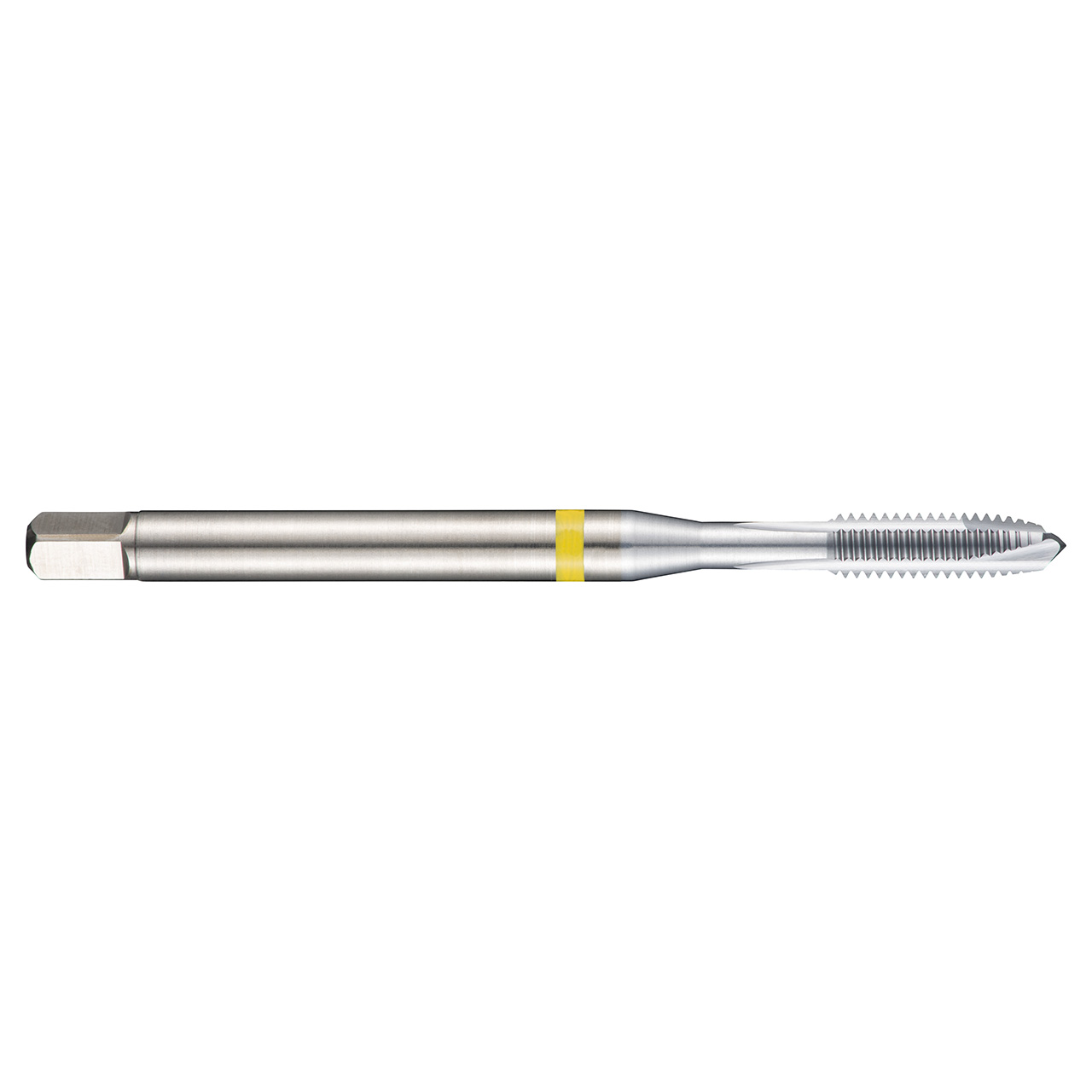

Dormer E297M6 | 0.2362" Diameter x 3.1496" OAL 3 Flute Flash Chrome Coated Spiral Point Tap

$23.81
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026487
UPC:
7320760662908
Weight:
0.53 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with flash chorme surface finish for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.2362"
Overall Length (Inch)3.1496"
Clamping Width (mm)4.9mm
No of Flutes3
Usable Length (mm)30mm
Thread Pitch (mm)1mm
Clamping Length8
Thread Diameter Size6
Threading Length (mm)15mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingFlash Chrome
Tap Chamfer StyleB 3.5-5
Thread FormM-Metric coarse
