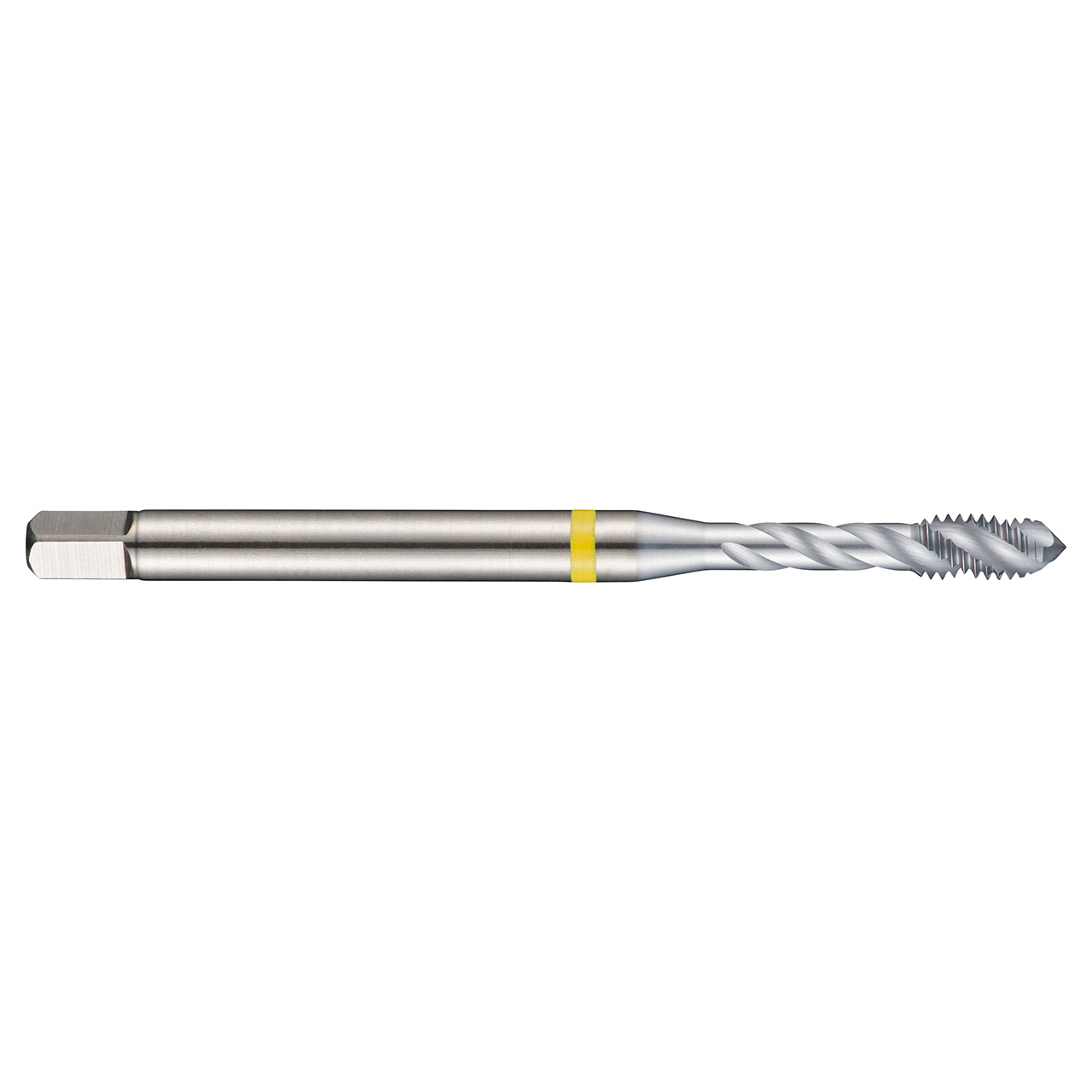

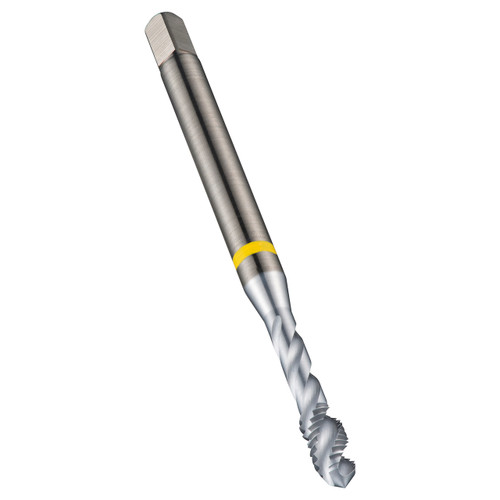

Dormer E298M4 | 0.1772" Diameter x 2.4803" OAL 3 Flute Flash Chrome Coated Spiral Flute Tap

$24.66
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026500
UPC:
7320760663035
Weight:
0.28 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M4 with 0.70mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with flash chorme surface finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.1772"
Overall Length (Inch)2.4803"
Clamping Width (mm)3.4mm
No of Flutes3
Flute Helix Angle40
Usable Length (mm)21mm
Thread Pitch (mm)0.7mm
Clamping Length6
Thread Diameter Size4
Threading Length (mm)7mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingFlash Chrome
Tap Chamfer StyleC 2-3
Thread FormM-Metric coarse
