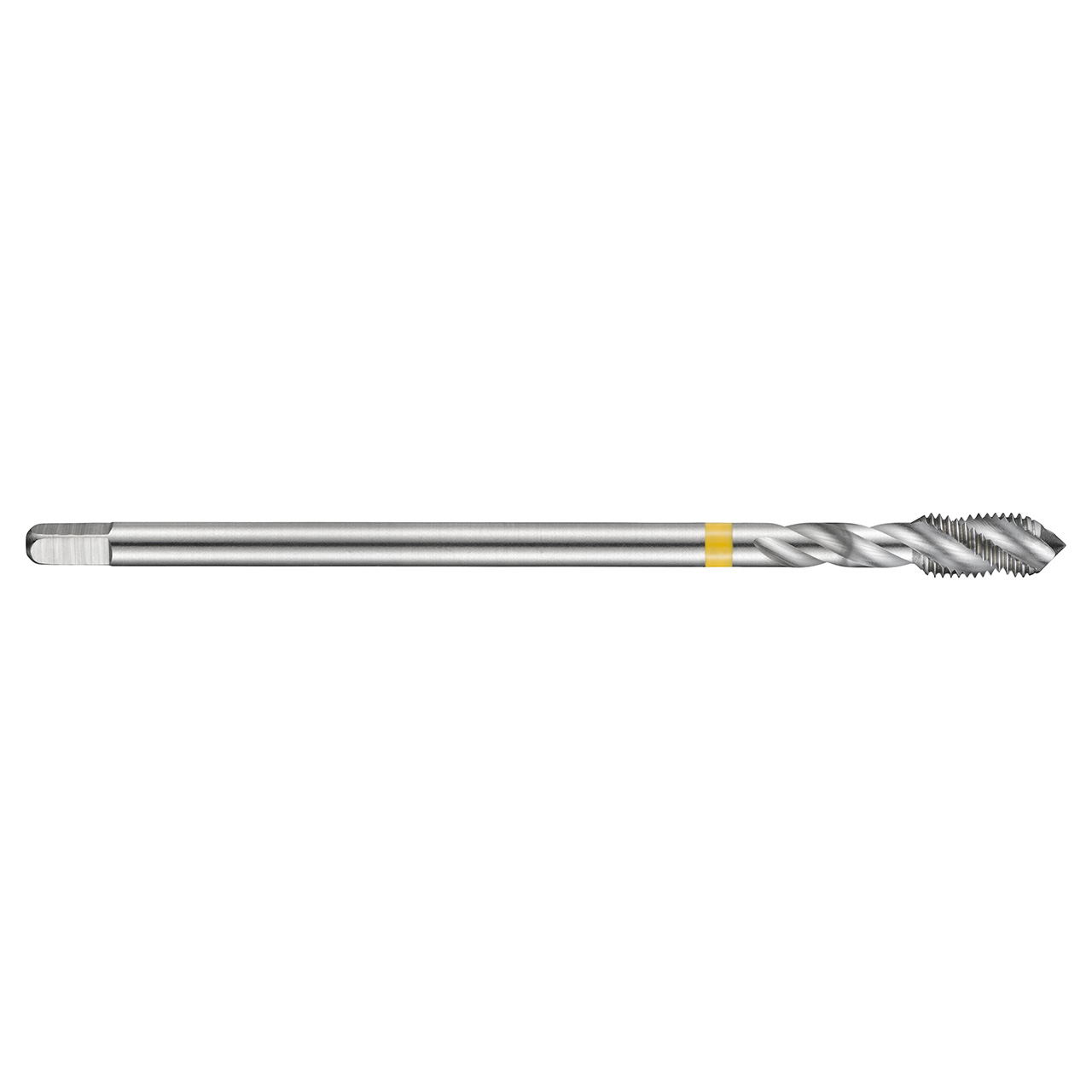

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M6 with 0.75mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with flash chorme surface finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.1772" |
| Overall Length (Inch) | 3.1496" |
| Clamping Width (mm) | 3.4mm |
| No of Flutes | 3 |
| Flute Helix Angle | 40 |
| Thread Pitch (mm) | 0.75mm |
| Clamping Length | 6 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 10mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Flash Chrome |
| Tap Chamfer Style | C 2-3 |
| Thread Form | MF-Metric fine |
