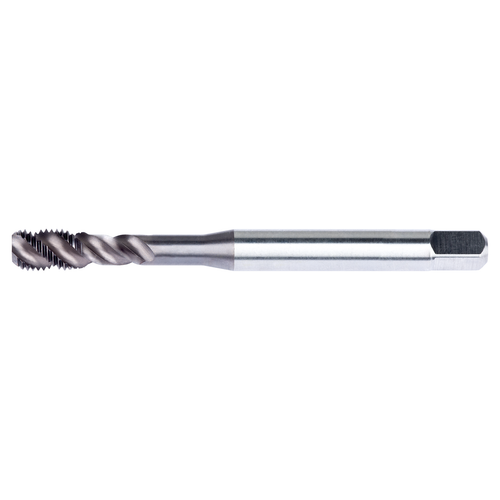

Thread size MF10 mm x 1 mm, with thread tolerance class 93707, and maximum threading depth 25 mm.
Product Specifications
| Manufacturer Part Number | E398M10X1.0 |
| Connection Diameter (mm) | 7.00mm |
| Connection Diameter (Decimal Inch) | 0.276" |
| Thread Diameter Size | 10" |
| Overall Length (Decimal Inch) | 3.543" |
| Overall Length (mm) | 90.00mm |
| Thread Length (mm) | 13.00mm |
| Thread Pitch (Decimal Inch) | 0.039" |
| Thread Pitch (mm) | 1.00mm |
| Premachined Hole Diameter (mm) | 9.00mm |
| Clamping Length (mm) | 8.00mm |
| Clamping Width (mm) | 5.50mm |
| Thread Length (Decimal Inch) | 0.512" |
| Clamping Length (Decimal Inch) | 0.315" |
| Clamping Width (Decimal Inch) | 0.217" |
| Premachined Hole Diameter (Decimal Inch) | 0.354" |
| Number of Flutes | 3 |
| Tap Chamfer Style | C 2 - 3 |
| Thread Form | MF - Metric Fine |
| Flute Geometry | Spiral Flute Geometry |
| Flute Helix Angle (Degree) | 48 Degree |
| Cutting Direction | Right Hand |
| Basic Standard Group | DIN 374 |
| Material | HSS-E-PM |
| Coating | TiCN |
| Product Type | Spiral Flute Tap |
| Country of Origin | Brazil |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Thread Diameter Size:
10"
Thread Length (Inch):
33/64"
Thread Length (Decimal Inch):
0.5100"
Thread Length (mm):
13.00mm
Material:
HSS-E-PM
Finish/Coating:
TiCN
interval quantity:
1
