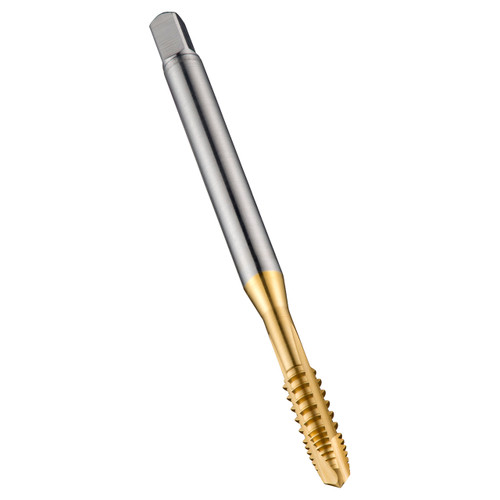

Dormer E422M8 | 0.315" Diameter x 3.5433" OAL 3 Flute TiN Coated Spiral Point Tap

$52.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022591
UPC:
7320760092972
Weight:
1.20 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.315"
Overall Length (Inch)3.5433"
Clamping Width (mm)6.2mm
No of Flutes3
Usable Length (mm)35mm
Thread Pitch (mm)1.25mm
Clamping Length9
Thread Diameter Size8
Threading Length (mm)18mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiN
Tap Chamfer StyleB 3.5-5
Surface ColorGold
Thread FormM-Metric coarse
